Parts Catalog
Timing system II
6
Parts Diagram
Parts Catalog
Throttle body II
by
Timing system I
Timing system II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Rocker arm rod
GU37045006
£146,72 Unit Price incl. VAT
2
Tappet
GU17045860
£180,11 Unit Price incl. VAT
3
Camshaft
GU30053360
Not Available
4
Flange
GU12054000
Not Available
5
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
6
Washer 6,5x11x2
GU95120065
£1,02 Unit Price incl. VAT
7
Timing system gear
GU29054460
Not Available
8
Spring washer 19x34x1,5
GU14433400
£1,02 Unit Price incl. VAT
9
Nut M18X1,5
GU92602518
Not Available
10
Pinion
GU14072001
£34,61 Unit Price incl. VAT
11
Washer 25,5x35x2
GU95100837
£2,04 Unit Price incl. VAT
12
Nut M25
GU92602525
£22,02 Unit Price incl. VAT
13
Transmission key
GU91702355
£32,86 Unit Price incl. VAT
14
Chain
GU28058060
£47,76 Unit Price incl. VAT
15
Chain tensioner
GU30057810
Not Available
16
Hex screw
GU98052435
£2,04 Unit Price incl. VAT
17
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT

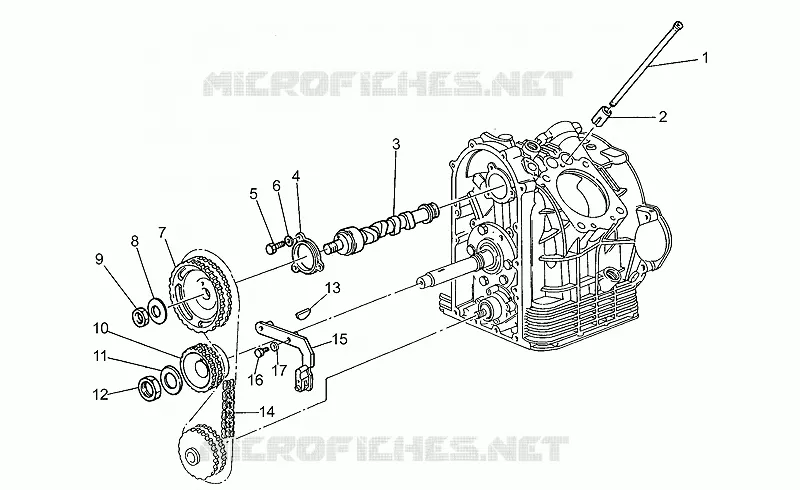

Find the detailed Timing system II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
