1
Engine displacement
1100
2
Model
CALIFORNIA
3
Year
1997
4
Trim
California EV (V11 EV USA)
5
Parts Catalog
Crankshaft I
6
Parts Diagram
Parts Catalog
Gear lever
by
Crankshaft II
Crankshaft I
1
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
1
Cylinder with piston
GU03060130
Not Available
4
Pistonring set
GU30060660
Not Available
5
Piston ring
GU30060760
£75,68 Unit Price incl. VAT
6
Piston ring
GU30060960
£52,38 Unit Price incl. VAT
7
Piston ring
GU30061060
Not Available
8
Piston pin
GU30061241
£114,19 Unit Price incl. VAT
9
Stop ring
GU90351038
Not Available
10
Gasket
GU14020865
£5,98 Unit Price incl. VAT
11
O-ring 9x2
GU90706094
£1,87 Unit Price incl. VAT
12
Stud bolt
GU12021800
£35,70 Unit Price incl. VAT
13
Stud bolt
GU12021700
Not Available
14
Connecting rod
GU37061506
Not Available
15
Connecting rod screw
GU37062206
Not Available
16
Bushing
GU91112128
£67,02 Unit Price incl. VAT
17
Bearing half-shell
GU37062005
Not Available
17
Bearing half-shell 0,254 mm
GU37062006
£57,23 Unit Price incl. VAT
17
Bearing half-shell 0,762 mm
GU37062008
Not Available
17
Bearing half-shell 0,508 mm
GU37062007
£57,23 Unit Price incl. VAT
18
Drive shaft
GU30064161
£1 695,41 Unit Price incl. VAT
19
Cover
GU37065405
£15,98 Unit Price incl. VAT
20
Flywheel cpl.
GU29067060
Not Available
21
screw
GU12067701
£0,72 Unit Price incl. VAT
22
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
23
Chain ring
GU17067900
£184,60 Unit Price incl. VAT
24
Hex screw
GU98054420
£0,49 Unit Price incl. VAT

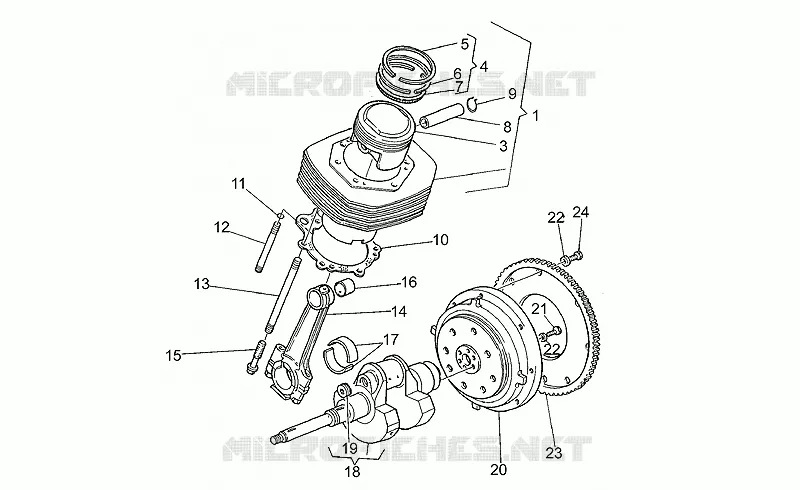

Find the detailed Crankshaft I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
