Crankcase I for MOTO GUZZI LAVERDA SCARABEO California EV (V11 EV USA) from 2000

Free shipping for all orders to United Kingdom over £150! See conditions.

Crankcase I

1

Crankcase, grey

GU30000770

Not Available

2

Disc

GU12003900

Not Available

3

Stud bolt M8x66

GU96508066

£50,56 Unit Price incl. VAT

4

Washer

GU95004208

£0,70 Unit Price incl. VAT

5

Nut

GU92781081

£10,21 Unit Price incl. VAT

6

Coupling bush

GU12018900

£10,75 Unit Price incl. VAT

7

Stud bolt M8x75

GU96508075

£13,44 Unit Price incl. VAT

8

Nut

GU92602208

Not Available

9

Pin

GU95512081

£4,34 Unit Price incl. VAT

10

Complete flange

GU14011900

Not Available

10

Flange min.0,2 mm

GU14011901

£50,76 Unit Price incl. VAT

11

Pin

GU12012200

£15,28 Unit Price incl. VAT

12

screw

GU98054425

Not Available

13

Spring washer 8x15x0,3

GU61270300

£1,70 Unit Price incl. VAT

14

Cover gasket

GU12001200

Not Available

15

Timing system cover

GU30001461

Not Available

16

Hex socket screw

GU98622325

£1,02 Unit Price incl. VAT

17

screw M6x35

GU98620335

£1,14 Unit Price incl. VAT

18

Adhesive label

GU02517700

Not Available

19

Gasket ring 28x38x7

GU90402840

£15,29 Unit Price incl. VAT

20

Flange

GU18001150

£13,20 Unit Price incl. VAT

21

Generator cover polished plated

GU03001600

£177,36 Unit Price incl. VAT

22

screw

GU98310631

£1,58 Unit Price incl. VAT

23

Rubber spacer

GU19007700

£4,44 Unit Price incl. VAT

24

Sump gasket

GU14003600

£11,04 Unit Price incl. VAT

25

Motor oil flange

GU30003260

Not Available

26

screw

GU98052390

£1,24 Unit Price incl. VAT

27

Oil sump grey

GU30003560

Not Available

27

Oil sump grey

GU03003501

Not Available

28

Oil unload plug M10x1

GU31003766

£15,77 Unit Price incl. VAT

29

Gasket

GU95100304

Not Available

30

screw

GU98620360

£1,58 Unit Price incl. VAT

30

Hex socket screw

GU98622325

£1,02 Unit Price incl. VAT

31

Washer 6,15x11x0,8

GU95004206

Not Available

32

Oil unload plug

GU12003702

£12,94 Unit Price incl. VAT

33

Gasket 20,1x28x2

GU95100709

£5,29 Unit Price incl. VAT

34

Oil plug

GU30004910

£10,85 Unit Price incl. VAT

35

O-ring 17,86X2,62

GU90706178

£0,98 Unit Price incl. VAT

36

Cover

GU29018361

£60,72 Unit Price incl. VAT

37

O-ring

GU90706313

£1,39 Unit Price incl. VAT

38

screw

GU98250820

£1,50 Unit Price incl. VAT

39

Gasket

GU12011800

£3,74 Unit Price incl. VAT

40

Complete flange

GU12011400

Not Available

40

Flange min.0,4 mm

GU12011402

£61,15 Unit Price incl. VAT

40

Flange min.0,6 mm

GU12011403

£61,15 Unit Price incl. VAT

40

Flange min.0,2 mm

GU12011401

£63,46 Unit Price incl. VAT

41

Pin

GU12011700

£14,52 Unit Price incl. VAT

42

Gasket ring

GU90405367

£35,53 Unit Price incl. VAT

43

Engine oil seal kit

GU17999550

Not Available

44

Gaskets set

GU30999060

Not Available

45

Engine

GU03991000

Not Available

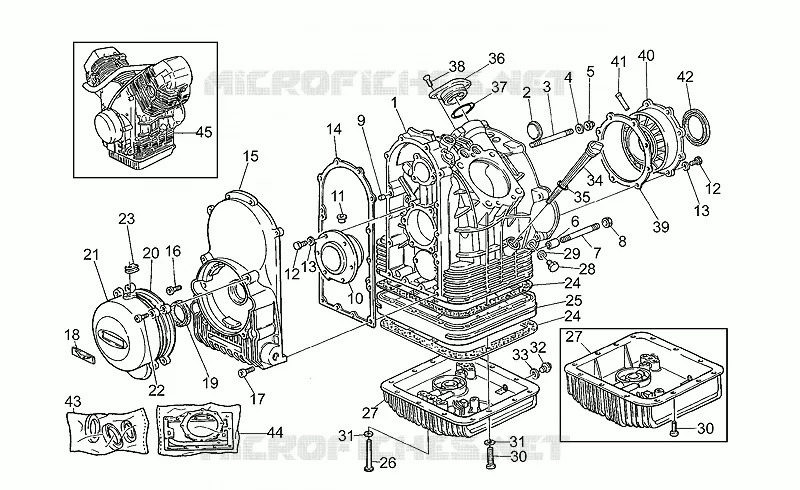

Find the detailed Crankcase I MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
