Driven shaft for MOTO GUZZI LAVERDA SCARABEO California EV (V11 EV USA) from 2000

Free shipping for all orders to United Kingdom over £150! See conditions.

Driven shaft

1

Driven shaft

GU30213602

Not Available

2

Nut

GU14217410

£23,46 Unit Price incl. VAT

3

Shim 17,25x27x0,5

GU43083810

£1,58 Unit Price incl. VAT

4

Clearance washer 17,1x30

GU14215400

£3,13 Unit Price incl. VAT

5

Gear 4a AS 5 inn.Z=20

GU03215100

£237,17 Unit Price incl. VAT

5

Gear 4a Z=20

GU14215110

Not Available

6

Ring 4a

GU92259017

£21,49 Unit Price incl. VAT

7

Roller cage 4a A.S.

GU92251022

£21,86 Unit Price incl. VAT

8

Sliding sleeve 3a-4a

GU14231012

£113,81 Unit Price incl. VAT

8

Hose 3a-4a AS 5 inn.

GU30231025

£172,98 Unit Price incl. VAT

9

Hose

GU14232512

£38,08 Unit Price incl. VAT

10

Washer 25x40x3

GU14218011

£7,98 Unit Price incl. VAT

11

Gear 3a AS 5 inn.Z=22

GU03214800

£47,30 Unit Price incl. VAT

11

Gear 3a Z=22

GU14214810

Not Available

12

Bush 1a-2a-3a AS

GU14213001

£56,30 Unit Price incl. VAT

13

Gear 2a AS 5 inn.Z=25

GU03214500

£46,15 Unit Price incl. VAT

13

Gear 2a Z=25

GU14214510

Not Available

14

Nut

GU14219310

Not Available

15

Ball

GU92295702

£0,67 Unit Price incl. VAT

16

Washer 22,1x32x2

GU14217300

£2,96 Unit Price incl. VAT

17

Gear 5a AS Z=21

GU14215213

£175,62 Unit Price incl. VAT

18

Gear 1a AS 5 inn.Z=28

GU30214225

£73,84 Unit Price incl. VAT

18

Gear 1a Z=28

GU14214210

Not Available

19

Sliding sleeve 1a-2a

GU14230711

£136,27 Unit Price incl. VAT

19

Sliding sleeve 1a-2aAS5 inn

GU30230725

£35,76 Unit Price incl. VAT

20

Shift cam

GU14234405

£78,46 Unit Price incl. VAT

21

Washer 8,2x28x1

GU14235500

£1,46 Unit Price incl. VAT

22

Shim 1,2 mm

GU55235003

£0,71 Unit Price incl. VAT

22

Shim 1 mm

GU55235002

£1,13 Unit Price incl. VAT

22

Shim 0,6 mm

GU55235000

£1,14 Unit Price incl. VAT

22

Shim 0,8 mm

GU55235001

£0,95 Unit Price incl. VAT

23

Rod

GU14234300

£26,35 Unit Price incl. VAT

24

Pin

GU14234600

£12,38 Unit Price incl. VAT

25

Rod

GU14232400

£62,58 Unit Price incl. VAT

26

Fork 1a-2a-3a-4a

GU14230501

£249,72 Unit Price incl. VAT

27

Fork

GU14231201

£221,92 Unit Price incl. VAT

28

O-ring 21,95x1,78

GU90706219

£1,76 Unit Price incl. VAT

29

Washer

GU28217350

£52,70 Unit Price incl. VAT

30

Roller cage 30x35x13

GU92251030

£21,80 Unit Price incl. VAT

31

O-ring 20,24X2,62

GU90706203

£1,39 Unit Price incl. VAT

32

Preselection complete

GU28236260

£91,67 Unit Price incl. VAT

33

Spring

GU28238261

Not Available

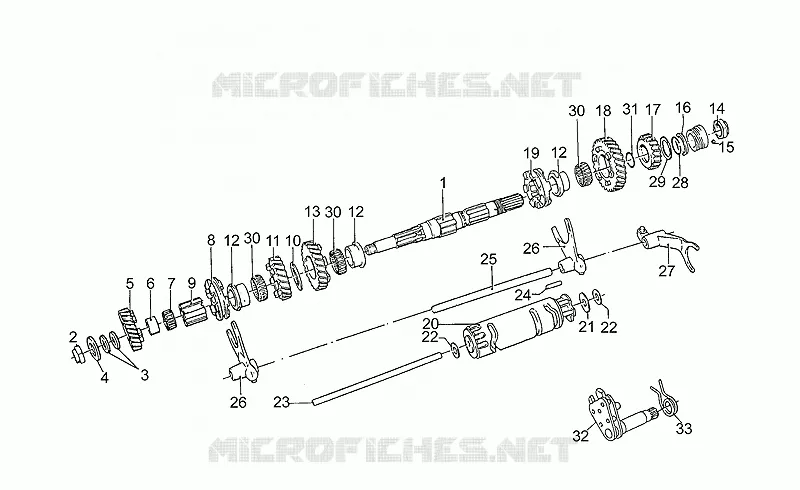

Find the detailed Driven shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
