1
Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2016
4
Trim
California Touring SE ABS
5
Parts Catalog
Saddle
6
Parts Diagram
Parts Catalog
Front mudguard-Pillar
by
Windshield
Saddle
1
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
1
Saddle
88749400C3
£391,16 Unit Price incl. VAT
2
Saddle rubber
B064023
£7,86 Unit Price incl. VAT
3
Saddle rubber
B064024
£7,84 Unit Price incl. VAT
4
Pass.saddle connecting plate
AP8102913
£30,04 Unit Price incl. VAT
5
Vite TBEI M6x25
AP8152117
£2,63 Unit Price incl. VAT
6
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
7
Saddle release cable
B063439
£12,30 Unit Price incl. VAT
8
Cable fixing plate
978415
£13,10 Unit Price incl. VAT
9
Fork spring
AP8121420
£15,89 Unit Price incl. VAT
10
Saddle lock fix.plate
886820
£18,91 Unit Price incl. VAT
11
Handlebar with backrest
2B001669
£949,14 Unit Price incl. VAT
12
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
13
Backrest cushion
2B001793000C1
£76,39 Unit Price incl. VAT
14
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
15
Seat back cover
2B001802
£127,01 Unit Price incl. VAT

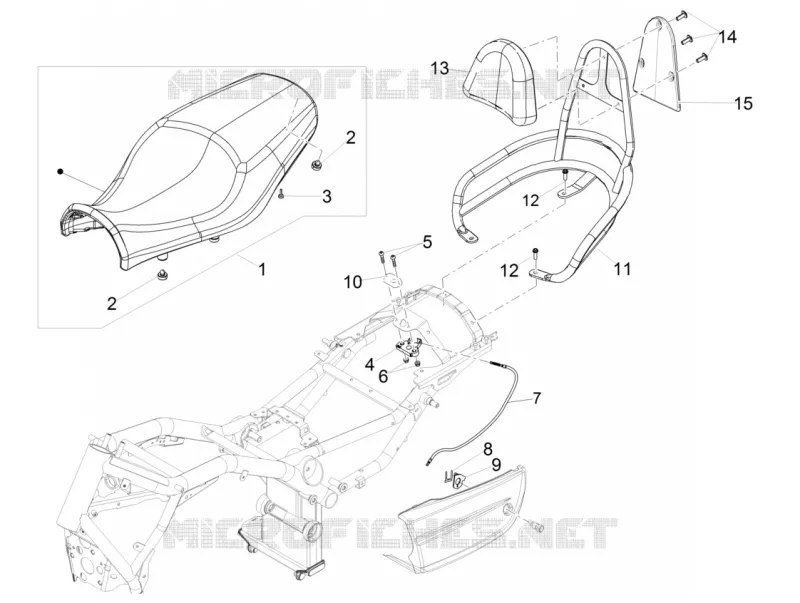

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
