Engine displacement
1400
2
Model
CALIFORNIA
3
Year
2016
4
Trim
California Touring SE ABS
5
Parts Catalog
Gear lever
6

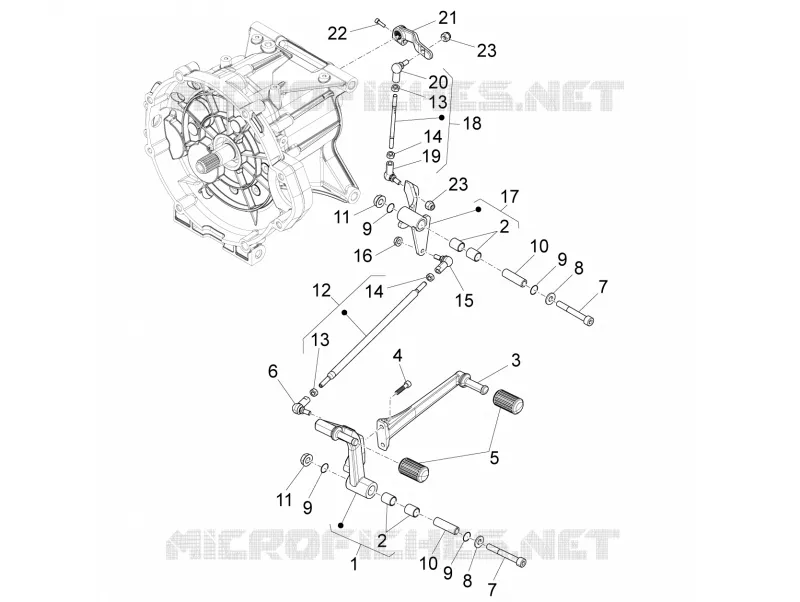

Parts Diagram
Parts Catalog
RH cylinder timing system I
by
Throttle body
Gear lever
1
2
2
3
4
5
6
7
7
8
8
9
9
9
9
10
10
11
11
12
13
13
14
14
15
16
17
18
19
20
21
22
23
23
1
Gear lever I
B063035
£238,64 Unit Price incl. VAT
2
Sintered bushing
895328
£6,22 Unit Price incl. VAT
3
Gear lever II
B063751
£237,68 Unit Price incl. VAT
4
Hex socket screw M6x25
GU98682325
£1,26 Unit Price incl. VAT
5
Rubber pedal
GU13432640
£9,67 Unit Price incl. VAT
6
Left ball joint M6
898397
£16,18 Unit Price incl. VAT
7
Hex socket screw M8x60
GU98680460
£5,28 Unit Price incl. VAT
8
Washer
GU95008308
£1,26 Unit Price incl. VAT
9
O-ring 11,11x1,78
AP8144007
£1,39 Unit Price incl. VAT
10
Spacer
B063903
£10,44 Unit Price incl. VAT
11
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
12
Tie rod assembly
887510
£21,61 Unit Price incl. VAT
13
Nut
GU92606206
£1,02 Unit Price incl. VAT
14
LH thread nut M6
GU31256881
£5,08 Unit Price incl. VAT
15
RH ball joint M6
898396
£16,46 Unit Price incl. VAT
16
Nut M6
GU92630707
£2,04 Unit Price incl. VAT
17
Lever
887318
£85,75 Unit Price incl. VAT
18
Tie rod assembly
B063639
£51,23 Unit Price incl. VAT
19
RH ball joint M6
AP8210007
£15,91 Unit Price incl. VAT
20
Left ball joint M6
AP8110053
£16,18 Unit Price incl. VAT
21
Lever
GU05256930
£141,68 Unit Price incl. VAT
22
Hex socket screw M6x20
GU98682320
£1,26 Unit Price incl. VAT
23
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
