Engine displacement
125
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Undersaddle
6
Parts Diagram
Parts Catalog
Carburettor I
by
Front body - Front cover
Undersaddle
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
14
15
16
17
18
19
20
21
1
Bushing
AP8121664
Not Available
2
Fuel sens. cover, black
AP8238856
Not Available
3
Vis taraud pour plast. Inox
AP8150413
£1,61 Unit Price incl. VAT
4
Caoutchouc corps filtre
AP8220370
£2,98 Unit Price incl. VAT
5
"Douille en ""T"""
AP8121725
£1,88 Unit Price incl. VAT
6
Elastique support feu
AP8120177
£6,95 Unit Price incl. VAT
7
Toolkit
AP8104715
Not Available
7
Toolkit
AP8104821
Not Available
8
Serrure selle
AP8102945
£38,41 Unit Price incl. VAT
9
Lock cable
AP8114381
Not Available
10
Vis bride
AP8152277
£1,88 Unit Price incl. VAT
11
"Douille en ""T"""
AP8121075
£1,96 Unit Price incl. VAT
12
Collier serr. Tube
AP8104501
£5,29 Unit Price incl. VAT
13
Vis
AP8150425
£1,88 Unit Price incl. VAT
14
Rondelle
AP8150013
£1,61 Unit Price incl. VAT
15
Collier serr. Tube
AP8104502
£6,26 Unit Price incl. VAT
16
Vis bride
AP8152287
£2,63 Unit Price incl. VAT
17
"Douille en ""T"" 8,5x10,7x12"
AP8221128
£2,20 Unit Price incl. VAT
18
Vis bride M6X16
AP8152278
£1,91 Unit Price incl. VAT
19
Clip pour vis taraud
AP8201763
£1,85 Unit Price incl. VAT
20
Saddle compartment, black
AP8178646
Not Available
21
Durite d'admission
AP8144510
£15,84 Unit Price incl. VAT

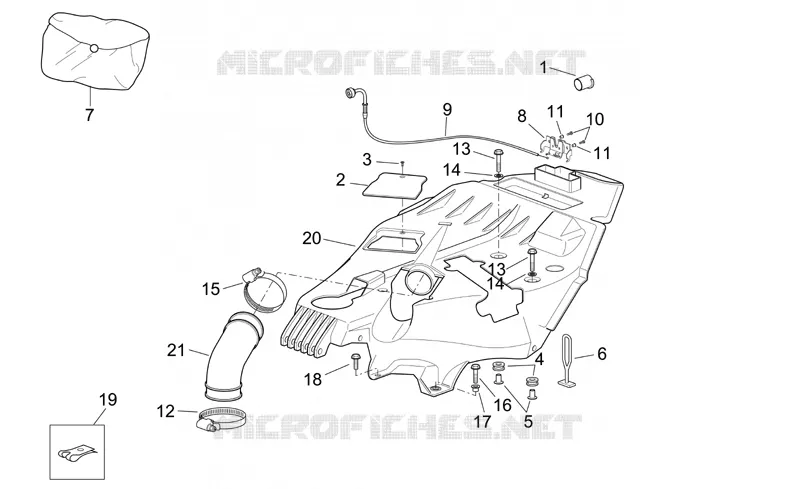

Find the detailed Undersaddle MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
