Parts Catalog
Ignition unit II
6
Parts Diagram
Parts Catalog
Front body - Handguard
by
Carburettor III
Ignition unit II
1
2
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
28
29
30
31
32
1
Flywheel cover cpl.
AP8577011
Not Available
2
Water pump shaft assy.
AP8580143
Not Available
3
Gasket ring
AP8590055
Not Available
3
Oil seal
AP8560018
Not Available
4
Insert
AP8560020
Not Available
5
Pump impeller drive key
AP8577014
Not Available
6
Bearing 28x8x9
AP8577012
Not Available
7
Gasket ring
AP8577013
Not Available
8
Rotor cpl.
AP8577042
Not Available
9
Stator cpl.
AP8577045
Not Available
10
Water pump cover
AP8580094
Not Available
11
screw M6x14
AP8577048
Not Available
12
Pump-cylinder hose
AP8580277
Not Available
12
Water pipe
AP8577038
Not Available
13
Starter clutch assy.
AP8570014
Not Available
14
Hex socket screw M6x24
847679
Not Available
15
Transmission key
AP8560006
Not Available
16
Special nut
AP8577043
Not Available
17
Break washer
AP8550487
Not Available
18
Chain ring
AP8570018
Not Available
19
Cover
AP8577015
Not Available
20
Gasket
AP8550417
Not Available
21
Plain washer
AP8577044
Not Available
22
By-pass pipe
AP8575003
Not Available
23
plate
AP8577049
Not Available
24
screw M6x30
AP8560011
Not Available
25
plate
AP8577010
Not Available
26
screw
AP8560009
Not Available
27
O-ring
AP8580084
Not Available
28
Hose clamp
AP8580217
Not Available
29
Drive key
AP8577037
Not Available
30
Screw
AP8551060
Not Available
31
Fan
AP8276091
Not Available
32
Water pump shaft assy.
AP8577096
Not Available

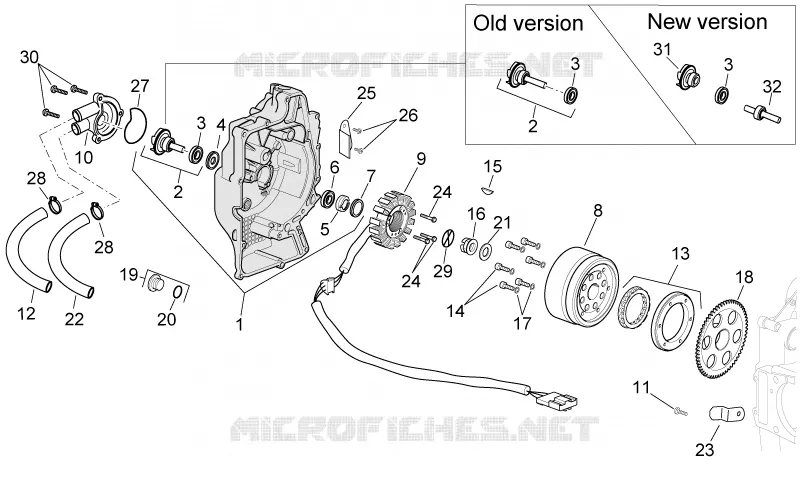

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
