Engine displacement
125
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Carburettor I
6

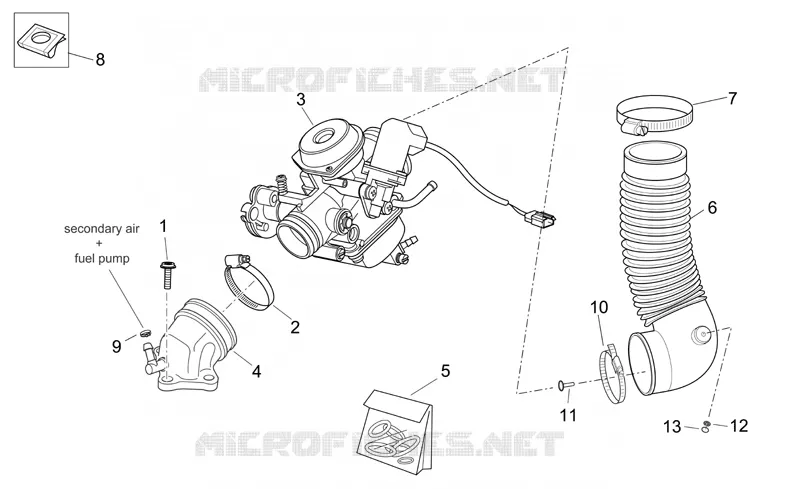

Parts Diagram
Parts Catalog
Ignition unit I
by
Undersaddle
Carburettor I
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Screw w/ flange M6x25
AP8550173
Not Available
1
Screw w/ flange
AP8540002
Not Available
2
Hose clamp
AP8570079
Not Available
3
Carburettor cpl.
AP8580265
Not Available
3
Carburettor cpl.
AP8580262
Not Available
4
Intake manifold
AP8580082
Not Available
4
Intake manifold
AP8575043
Not Available
5
Carburettor gasket set
AP8580012
Not Available
6
Intake hose
AP8144594
Not Available
7
Hose clamp D=60-80
AP8120246
£4,27 Unit Price incl. VAT
8
Clip M6
AP8102376
Not Available
9
Hose clip D8x5,5*
AP8101770
£12,56 Unit Price incl. VAT
10
Hose clamp 40-60 h9
AP8121639
Not Available
11
Joint
AP8144638
Not Available
12
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
13
Rubber spacer
AP8102504
£2,52 Unit Price incl. VAT
