Engine displacement
250
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
RH controls
6
Parts Diagram
Parts Catalog
Electrical system II
by
Front fork - Stem base
RH controls
1
2
3
4
5
6
7
8
8
8
9
10
11
12
13
14
15
16
17
18
1
Upper RH light control cover
AP8124805
Not Available
2
Lower RH light control cover
AP8124806
Not Available
3
Bouton démarrage
AP8127238
£12,71 Unit Price incl. VAT
4
Handgrip pair, black
AP8118643
Not Available
4
Handgrip pair, black
AP8118657
Not Available
5
Throttle cable
AP8114476
Not Available
6
Throttle place
AP8118499
Not Available
6
Siège comm. gaz;
AP8118582
£8,51 Unit Price incl. VAT
7
Vis
AP8150165
£0,89 Unit Price incl. VAT
8
Vis
AP8152268
£1,88 Unit Price incl. VAT
9
Levier frein
AP8133811
£53,33 Unit Price incl. VAT
9
Brake lever
AP8118641
Not Available
10
Pump cover
AP8113863
Not Available
10
Pump cover
AP8133808
Not Available
11
Pump cover screw
AP8113859
Not Available
11
Vis couvercle pompe
AP8133807
£7,28 Unit Price incl. VAT
12
Pivot levier frein
AP8213584
£13,28 Unit Price incl. VAT
12
Vis levier
AP8125757
£12,31 Unit Price incl. VAT
13
Ecrou
AP8213298
£17,00 Unit Price incl. VAT
13
Écrou
AP8213585
£7,48 Unit Price incl. VAT
14
stop Button
AP8127305
Not Available
15
Maît. cyl. frein AV;
AP8133582
£413,68 Unit Price incl. VAT
15
Front master cilinder
AP8133557
Not Available
15
Front master cilinder
AP8133734
Not Available
16
Piston cpl.;
AP8113861
£51,17 Unit Price incl. VAT
17
Kit révision pompe
AP8133812
£57,88 Unit Price incl. VAT
17
Kit révision pompe;
AP8113864
£37,90 Unit Price incl. VAT
18
Déviateur feux dte
AP8127634
£169,99 Unit Price incl. VAT

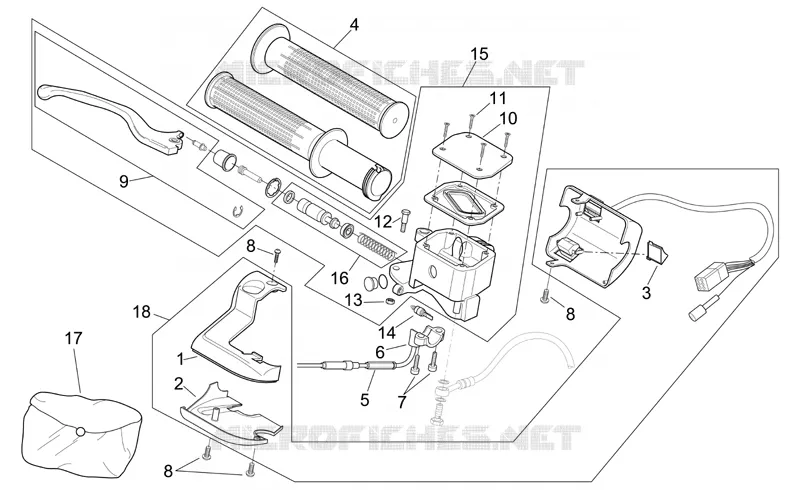

Find the detailed RH controls MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
