Engine displacement
250
2
Model
SCARABEO
3
Year
2006
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Top box
6

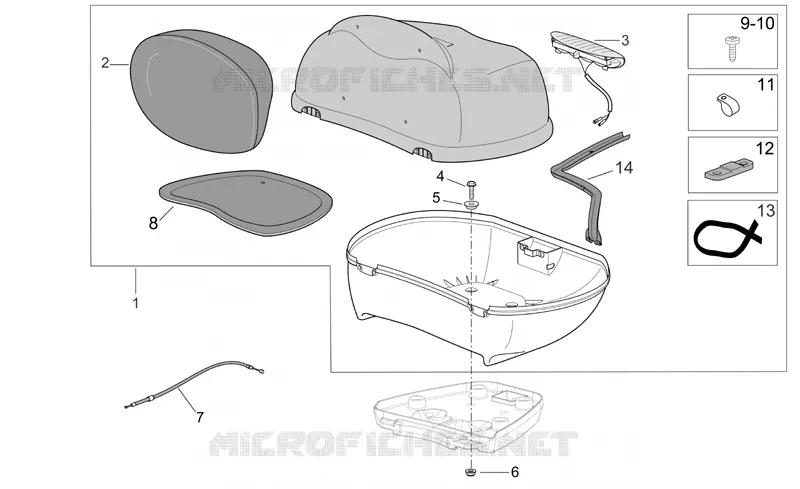

Parts Diagram
Parts Catalog
Front body - Front shield
by
Secondary air II
Top box
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Top box, blue
AP8179206
Not Available
1
Top box, o.grey
AP8178738
Not Available
1
Top box,c.sky blue
AP8179575
Not Available
1
Top box, red
AP8179593
Not Available
1
Top box, grey
AP8179557
Not Available
1
Top box, s.black
AP8178727
Not Available
2
Seat cushion
AP8129481
Not Available
2
Seat cushion
AP8129444
Not Available
2
Seat cushion
AP8129480
Not Available
2
Seat cushion
AP8129482
Not Available
3
Stop light
AP8127356
£92,96 Unit Price incl. VAT
4
Screw w/ flange M10x35
AP8152318
£3,62 Unit Price incl. VAT
5
T bush
AP8121151
£2,33 Unit Price incl. VAT
6
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
7
Lock cable
AP8114454
£36,59 Unit Price incl. VAT
8
Casing
AP8158989
Not Available
9
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
10
Self-tapping screw
AP8150444
£1,27 Unit Price incl. VAT
11
Black hose D8
AP8101890
£2,80 Unit Price incl. VAT
12
Plate
AP8134799
Not Available
13
Gasket d.5
AP8144245
£2,40 Unit Price incl. VAT
14
Support plate
AP8158971
Not Available
