Parts Catalog
Central stand
6
Parts Diagram
Parts Catalog
Secondary air II
by
Clutch
Central stand
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
14
15
1
Central stand
AP8146897
Not Available
2
Spring coupling screw
AP8580073
Not Available
3
Lateral stand
AP8146980
Not Available
3
Lateral stand
AP8146770
Not Available
4
Stand end stop
AP8220610
Not Available
5
Internal lateral stand spring
AP8163206
Not Available
6
Lateral stand spring
AP8163207
Not Available
7
Central stand spacer
AP8121617
Not Available
8
Gasket ring
AP8121638
Not Available
9
Hex socket screw M10x130
AP8150438
£18,83 Unit Price incl. VAT
10
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
11
Coil pull spring
AP8121014
£3,71 Unit Price incl. VAT
12
Spring fixing plate
AP8121876
£4,62 Unit Price incl. VAT
13
Rubber spacer
AP8144152
£6,19 Unit Price incl. VAT
14
Lateral stand screw
AP8152295
Not Available
15
Low nut M10x1,25
AP8152001
£2,63 Unit Price incl. VAT

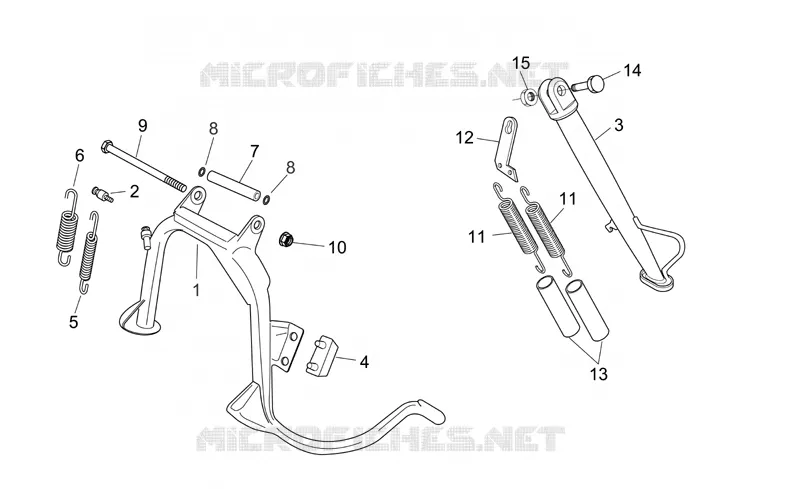

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
