Parts Catalog
Handlebar
6
Parts Diagram
Parts Catalog
VAMA strobe light
by
Front/rear mudguards
Handlebar
1
2
4
5
6
7
8
9
10
11
12
13
15
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
29
30
31
31
32
33
34
35
36
37
1
Handlebar
GU30600310
Not Available
2
Throttle
GU27603400
Not Available
4
Steering block
GU27604415
£11,33 Unit Price incl. VAT
5
Mobile body
GU27603815
Not Available
6
Cable guide
GU27604515
£12,77 Unit Price incl. VAT
7
Ring
GU27603620
£3,43 Unit Price incl. VAT
8
RH hand grip
GU19603515
£9,19 Unit Price incl. VAT
9
Gas lever transmission
GU27117522
£15,42 Unit Price incl. VAT
10
Cap
GU27117615
£3,70 Unit Price incl. VAT
11
Adjuster screw
GU27603715
£14,10 Unit Price incl. VAT
12
RH throttle cable
GU31117715
Not Available
12
Throttle cable
GU23117770
Not Available
13
Clutch lever cpl.
GU30605530
Not Available
15
screw
GU27601215
£0,73 Unit Price incl. VAT
15
screw
GU98612225
£0,67 Unit Price incl. VAT
16
U-bolt
GU27601015
Not Available
17
Clutch lever U-bolt
GU27601815
Not Available
18
Register
GU30602500
Not Available
19
Starter lever
GU27659415
Not Available
20
Clutch cable
GU27093022
£61,48 Unit Price incl. VAT
21
Guard
GU27663815
£11,88 Unit Price incl. VAT
22
Choke cable
GU27132815
£15,38 Unit Price incl. VAT
23
Splitter
GU30607910
£20,21 Unit Price incl. VAT
24
Switch support
GU19504025
£138,23 Unit Price incl. VAT
25
LH hand grip
GU19603015
Not Available
26
Ring
GU27603120
£3,60 Unit Price incl. VAT
27
LH lights selector
GU27738015
Not Available
28
Choke cable
GU27133515
£14,09 Unit Price incl. VAT
29
Switch
GU19756315
£47,74 Unit Price incl. VAT
30
RH support
GU19756725
£16,36 Unit Price incl. VAT
31
screw
GU98610110
£1,02 Unit Price incl. VAT
32
Siren int. decal
GU19924825
Not Available
33
LH support
GU19756715
Not Available
34
Light int. decal
GU19924815
Not Available
35
Spacer
GU91180607
Not Available
36
Nut
GU19769625
Not Available
37
Nut
GU92601003
Not Available

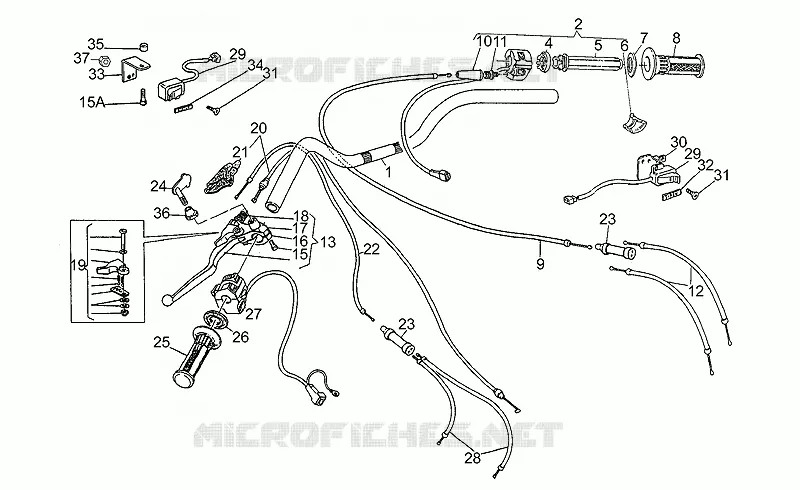

Find the detailed Handlebar MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for V 75 PA Vecchio Tipo

Battery - Motoplat ignition

Battery - Motoplat ignition

for V 75 PA Vecchio Tipo from 1994

Suitcase kit

Suitcase kit

for V 75 PA Vecchio Tipo from 1994

Fairing

Fairing

for V 75 PA Vecchio Tipo from 1994

Body

Body

for V 75 PA Vecchio Tipo from 1994

Bevel gear

Bevel gear

for V 75 PA Vecchio Tipo from 1994

Dashboard

Dashboard

for V 75 PA Vecchio Tipo from 1994

Headlight-Horn

Headlight-Horn

for V 75 PA Vecchio Tipo from 1994

Taillight

Taillight

for V 75 PA Vecchio Tipo from 1994

Air filter

Air filter

for V 75 PA Vecchio Tipo from 1994

Front fork

Front fork

for V 75 PA Vecchio Tipo from 1994

Swing arm

Swing arm

for V 75 PA Vecchio Tipo from 1994

Electrical system

Electrical system

for V 75 PA Vecchio Tipo from 1994

VAMA strobe light

VAMA strobe light

for V 75 PA Vecchio Tipo from 1994

Handlebar

Handlebar

for V 75 PA Vecchio Tipo from 1994

Front/rear mudguards

Front/rear mudguards

for V 75 PA Vecchio Tipo from 1994

Foot rests - Lateral stand

Foot rests - Lateral stand

for V 75 PA Vecchio Tipo from 1994

Brake caliper

Brake caliper

for V 75 PA Vecchio Tipo from 1994

Front master cilinder

Front master cilinder

for V 75 PA Vecchio Tipo from 1994

Rear master cylinder

Rear master cylinder

for V 75 PA Vecchio Tipo from 1994

Front wheel

Front wheel

for V 75 PA Vecchio Tipo from 1994

Rear wheel

Rear wheel

for V 75 PA Vecchio Tipo from 1994

Sonora two-tone sirens

Sonora two-tone sirens

for V 75 PA Vecchio Tipo from 1994

Front/rear shock absorber

Front/rear shock absorber

for V 75 PA Vecchio Tipo from 1994

Frame

Frame

for V 75 PA Vecchio Tipo from 1994

Digiplex ignition

Digiplex ignition

for V 75 PA Vecchio Tipo from 1994

Fuel supply

Fuel supply

for V 75 PA Vecchio Tipo from 1994

Exhaust unit

Exhaust unit

for V 75 PA Vecchio Tipo from 1994

Sound strobo lamp

Sound strobo lamp

for V 75 PA Vecchio Tipo from 1994

Drive shaft

Drive shaft

for V 75 PA Vecchio Tipo from 1994

Gear box

Gear box

for V 75 PA Vecchio Tipo from 1994

Carburettors

Carburettors

for V 75 PA Vecchio Tipo from 1994

Covers

Covers

for V 75 PA Vecchio Tipo from 1994

Timing system

Timing system

for V 75 PA Vecchio Tipo from 1994

Clutch

Clutch

for V 75 PA Vecchio Tipo from 1994

Starter motor

Starter motor

for V 75 PA Vecchio Tipo from 1994

Oil pump

Oil pump

for V 75 PA Vecchio Tipo from 1994

Transmission cage

Transmission cage

for V 75 PA Vecchio Tipo from 1994

Cylinder head

Cylinder head

for V 75 PA Vecchio Tipo from 1994

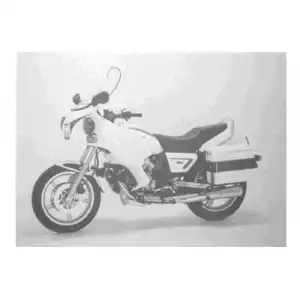

MOTO GUZZI LAVERDA SCARABEO V 75 PA Vecchio Tipo 1994
