Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Transmission cage
by
Cylinder head
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
RH cylinder head grey
GU20022120
Not Available
1
RH head
GU31022114
Not Available
2
LH cylinder head grey
GU20022220
Not Available
2
LH head
GU31022214
Not Available
3
Valve guide
GU61036801
£44,20 Unit Price incl. VAT
4
Snap ring
GU90353009
£1,02 Unit Price incl. VAT
5
Stud bolt
GU96506042
£10,42 Unit Price incl. VAT
6
Anti-vibration plate
GU19025300
£3,41 Unit Price incl. VAT
7
Nut
GU19021920
£10,73 Unit Price incl. VAT
8
Oil seal
GU19037820
£24,59 Unit Price incl. VAT
9
Valves cover
GU19023520
Not Available
9
Valves cover, stain.
GU31023500
Not Available
10
Gasket
GU19023700
£1,57 Unit Price incl. VAT
11
Nut M10X1,5
GU92603010
£1,54 Unit Price incl. VAT
12
Column nut
GU13021900
£15,36 Unit Price incl. VAT
13
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
14
Stud bolt M10x214
GU96510214
£30,86 Unit Price incl. VAT
15
Stud bolt M10x182
GU96510181
£29,15 Unit Price incl. VAT
15
Tie rod 162 mm
GU96510158
Not Available
16
Hex socket screw
GU98622325
£1,02 Unit Price incl. VAT
17
Cylinder with piston, grey
GU20060120
£458,50 Unit Price incl. VAT
17
Cylinder with piston
GU19060130
Not Available
18
Bushing
GU19021360
£19,37 Unit Price incl. VAT
19
Gasket
GU27022060
£40,02 Unit Price incl. VAT
20
Stud bolt M8x143
GU96508145
Not Available
21
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
22
Cover
GU93180245
£2,63 Unit Price incl. VAT
23
O-ring
GU61027200
£1,58 Unit Price incl. VAT
24
Gasket
GU27020820
Not Available
25
Spacer
GU19032980
£2,75 Unit Price incl. VAT

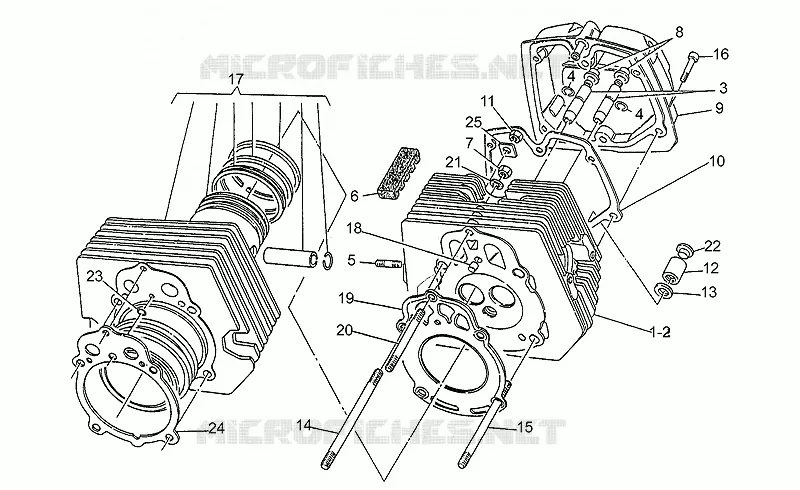

Find the detailed Cylinder head MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
