Engine displacement
125
2
Model
SCARABEO
3
Year
2005
4
Trim
Scarabeo E2 (engine Piaggio)
5
Parts Catalog
Front fork - Stem base
6
Parts Diagram
Parts Catalog
RH controls
by
Central body I
Front fork - Stem base
1
2
3
3
4
4
5
5
6
6
1
Front fork
AP8123793
Not Available
2
Stem base
AP8163001
Not Available
2
Stem base
AP8123904
Not Available
2
Stem base
AP8163161
Not Available
3
Plug
AP8123696
Not Available
3
Bouchon
AP8163303
£5,90 Unit Price incl. VAT
3
Bouchon
AP8123759
£5,94 Unit Price incl. VAT
4
Bague de butée
AP8123756
£1,16 Unit Price incl. VAT
4
Stop ring
AP8163304
Not Available
4
Joint torique;
AP8123695
£7,28 Unit Price incl. VAT
5
Hex socket screw M8x40
AP8150171
Not Available
6
Rondelle
AP8150017
£1,88 Unit Price incl. VAT

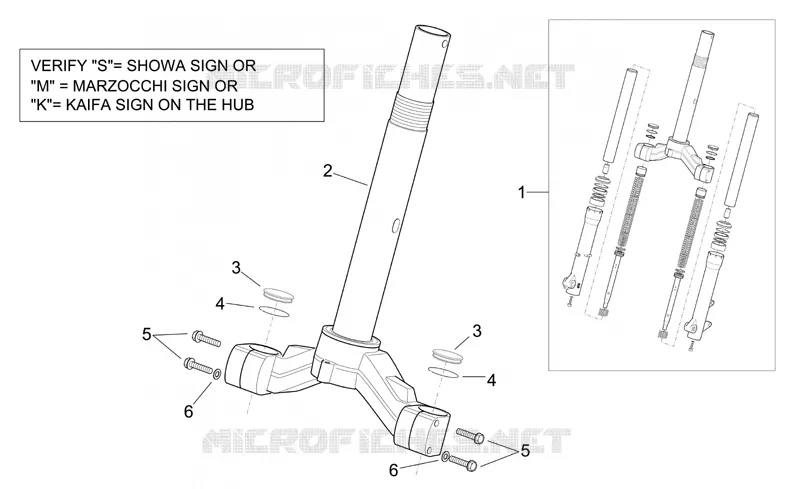

Find the detailed Front fork - Stem base MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
