Parts Catalog
Front brake system
6
Parts Diagram
Parts Catalog
Transmission complete I
by
Crank-case
Front brake system
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
1
Front master cilinder
2B001199
Not Available
2
Washer 4,3x8x1,5
GU95021104
£1,26 Unit Price incl. VAT
3
Spacer 10,25X20X4
GU91181003
£16,85 Unit Price incl. VAT
4
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
5
Stop switch
GU03749845
Not Available
6
Pump cover
2B001928
Not Available
7
Bracket
2B001929
£37,69 Unit Price incl. VAT
8
Lever pin cpl.
2B001927
Not Available
9
Brake lever
2B001926
£48,11 Unit Price incl. VAT
10
Bleeder+cap
GU05659230
£20,52 Unit Price incl. VAT
11
Pins+Caliper springs
GU01659130
£44,40 Unit Price incl. VAT
12
Spring
GU01659131
£46,15 Unit Price incl. VAT
13
Front disk brake caliper l.h.
2B001197
£438,08 Unit Price incl. VAT
14
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
15
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
16
Hex socket screw M10x1,25
AP8152385
£6,82 Unit Price incl. VAT
17
Pads pair
883673
£113,41 Unit Price incl. VAT

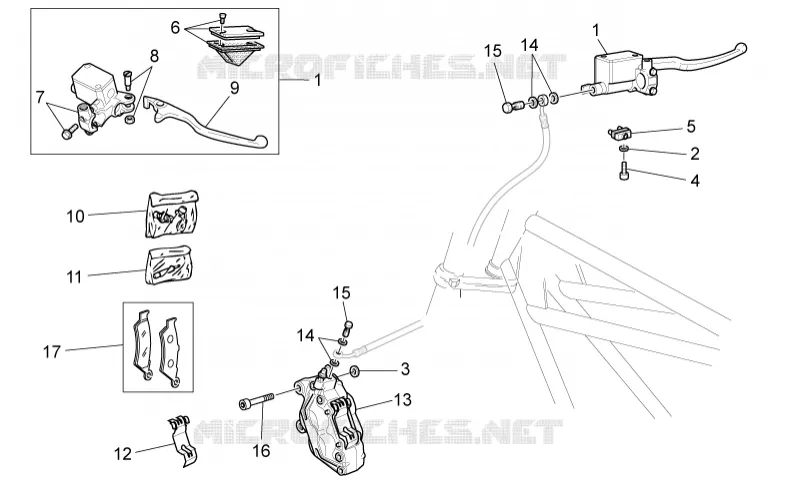

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
