Engine displacement
750
2
Model
V7
3
Year
2016
4
Trim
V7 II Stornello ABS
5
Parts Catalog

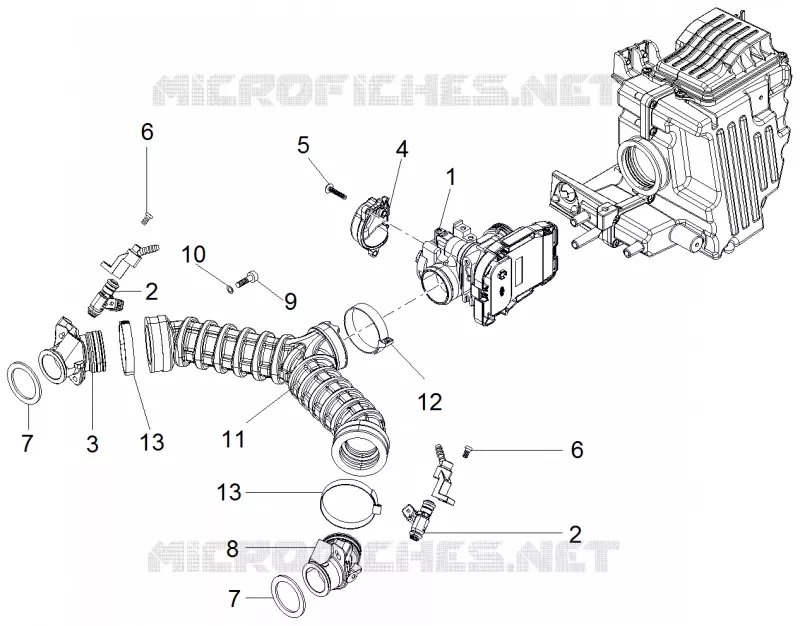

Throttle body
6
Parts Diagram
Parts Catalog
Rear body II- Plate holder
by
Front lights
Throttle body
1
2
2
3
4
5
6
6
7
7
8
9
10
11
12
13
13
1
Electronic control unit ECU for injection
CM228306
£620,20 Unit Price incl. VAT
2
Injector
B063049
£163,87 Unit Price incl. VAT
3
RH manifold
GU32115010
£32,94 Unit Price incl. VAT
3
RH intake connector
2A0007655
Not Available
4
Throttle body Protection
880260
£9,34 Unit Price incl. VAT
5
Torx convex big end screw
B016796
Not Available
6
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
7
Gasket
GU32115510
£7,78 Unit Price incl. VAT
8
LH manifold
GU32115011
£32,94 Unit Price incl. VAT
8
LH intake connector
2A0007645
Not Available
9
screw
GU98622322
£1,02 Unit Price incl. VAT
10
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
11
Throttle body hose
2B001031
£58,99 Unit Price incl. VAT
12
Hose clamp D.55
884310
£28,64 Unit Price incl. VAT
13
Hose clamp D.61
884311
£22,46 Unit Price incl. VAT
