Engine displacement
750
2
Model
V7
3
Year
2016
4
Trim
V7 II Stornello ABS
5
Parts Catalog
Throttle body
6
Parts Diagram
Parts Catalog
Front wheel I
by
Rear wheel I
Throttle body
1
2
2
3
4
5
6
6
7
7
8
9
10
11
12
13
13
1
Electronic control unit ECU for injection
CM228306
£620,20 Unit Price incl. VAT
2
Injector
B063049
£163,87 Unit Price incl. VAT
3
RH manifold
GU32115010
£32,94 Unit Price incl. VAT
3
RH intake connector
2A0007655
Not Available
4
Throttle body Protection
880260
£9,34 Unit Price incl. VAT
5
Torx convex big end screw
B016796
Not Available
6
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
7
Gasket
GU32115510
£7,78 Unit Price incl. VAT
8
LH manifold
GU32115011
£32,94 Unit Price incl. VAT
8
LH intake connector
2A0007645
Not Available
9
screw
GU98622322
£1,02 Unit Price incl. VAT
10
Washer 6,4x12
GU03013800
£1,98 Unit Price incl. VAT
11
Throttle body hose
2B001031
£58,99 Unit Price incl. VAT
12
Hose clamp D.55
884310
£28,64 Unit Price incl. VAT
13
Hose clamp D.61
884311
£22,46 Unit Price incl. VAT

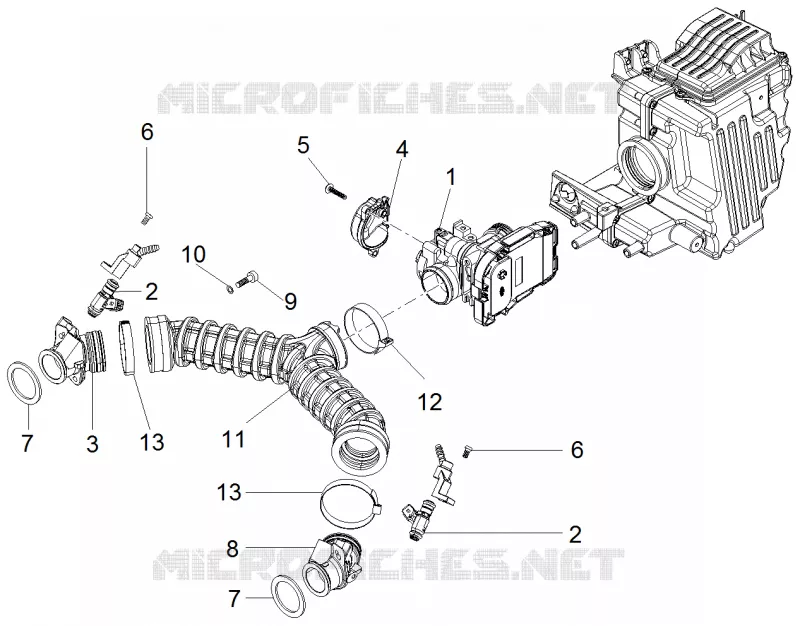

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
