Engine displacement
750
2
Model
V7
3
Year
2016
4
Trim
V7 II Stornello ABS
5
Parts Catalog
Rear body I- Mudguard
6

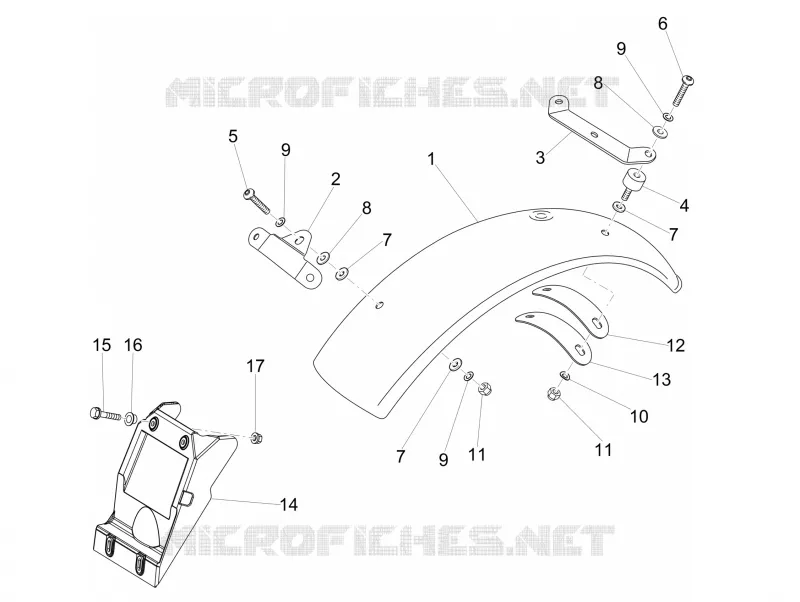

Parts Diagram
Parts Catalog
Generator - Regulator
by
Fron fork II
Rear body I- Mudguard
1
2
3
4
5
6
7
7
7
8
8
9
9
9
10
11
11
12
13
14
15
16
17
1
Rear mudguard, brushed finish
2S000237
£1 182,52 Unit Price incl. VAT
2
Front fastener bracket
2S000251
£25,75 Unit Price incl. VAT
3
Rear fastener bracket
2S000252
£25,90 Unit Price incl. VAT
4
M6 male/female rubber anti-vibration damper
AP8120459
£16,27 Unit Price incl. VAT
5
Hex socket screw M6x20
GU98370621
£1,02 Unit Price incl. VAT
6
Hex socket screw
GU98230512
Not Available
7
Missing description
Not Available
8
Washer 6,4x18x2
AP8150378
£1,27 Unit Price incl. VAT
9
Washer 12,5x6,4*
AP8150380
£0,14 Unit Price incl. VAT
10
Curved spring washer 6x12
658830
£0,95 Unit Price incl. VAT
11
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
12
Rubber
2S000255
£3,46 Unit Price incl. VAT
13
Stainless steel plate
2S000254
£11,63 Unit Price incl. VAT
14
Rear splash guard
2B001783
£14,81 Unit Price incl. VAT
15
Screw w/ flange
598839
£1,27 Unit Price incl. VAT
16
Bush
AP8121032
£3,88 Unit Price incl. VAT
17
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
