Engine displacement
750
2
Model
V7
3
Year
2016
4
Trim
V7 II Stornello ABS
5
Parts Catalog
Rear footrests
6
Parts Diagram
Parts Catalog
Front fork I
by
Gear box
Rear footrests
1
2
3
3
4
4
5
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
14
15
15
1
Rear footrest, RH
GU32442310
Not Available
2
Support rubber part
GU32443210
£10,92 Unit Price incl. VAT
3
Plate
GU32441210
£10,54 Unit Price incl. VAT
4
Footrest pin
CM228401
£3,17 Unit Price incl. VAT
5
Footrest plate
AP8134451
£5,77 Unit Price incl. VAT
6
Coil compress. spring
AP8121133
£3,22 Unit Price incl. VAT
7
Ball D6,35
AP8101861
£0,36 Unit Price incl. VAT
8
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
9
Stop ring
AP8120573
£0,73 Unit Price incl. VAT
10
Rear footrest, LH
GU32442710
Not Available
11
Support rubber part
GU32443211
£10,92 Unit Price incl. VAT
12
LH footrest support
2B003038
£258,05 Unit Price incl. VAT
13
RH footrest support
2B003037
£258,05 Unit Price incl. VAT
14
Special cap screw 8x25
2B002171
£0,86 Unit Price incl. VAT
15
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT

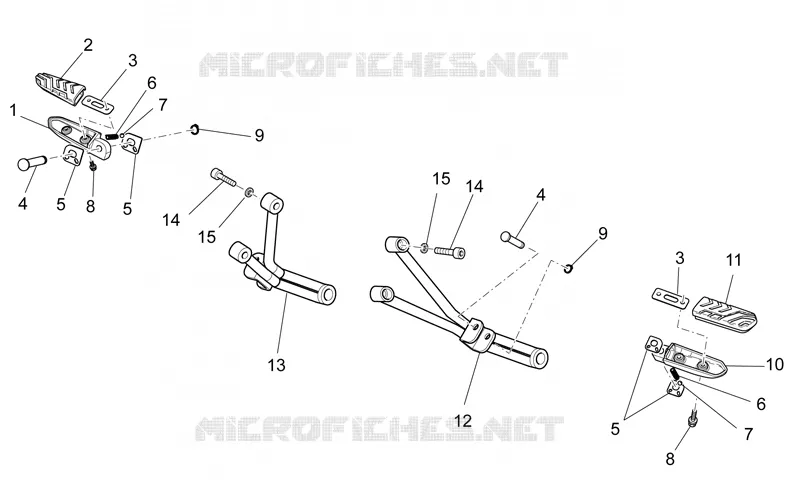

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
