Engine displacement
750
2
Model
V7
3
Year
2016
4
Trim
V7 II Stornello ABS
5
Parts Catalog
Clutch II
6
Parts Diagram
Parts Catalog
Frame II
by
Front fork I
Clutch II
1
2
5
6
6
7
10
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Clutch relese shaft
2A000383
£33,10 Unit Price incl. VAT
2
Adjuster screw
GU14090400
£42,74 Unit Price incl. VAT
5
Lever pin
2A000384
£21,78 Unit Price incl. VAT
6
O-ring 6.5x1.5
2A000385
£0,61 Unit Price incl. VAT
7
Outer body
GU14086100
£71,74 Unit Price incl. VAT
10
Clutch gear
B013037
£24,71 Unit Price incl. VAT
12
Clutch shaft Z=18
2A000204
£60,02 Unit Price incl. VAT
13
Drive rod
2A000216
£23,76 Unit Price incl. VAT
14
O-ring 23,52x1,78
GU90706235
£1,60 Unit Price incl. VAT
15
Spacer
GU19213760
£14,47 Unit Price incl. VAT
16
Nut
GU19356760
Not Available
17
Bush
GU14085900
£2,48 Unit Price incl. VAT
18
Bushing
GU05217630
£10,75 Unit Price incl. VAT
19
O-ring 17,13x2,62
GU90706170
£2,00 Unit Price incl. VAT
20
Thrust bearing
2A000376
£23,40 Unit Price incl. VAT
21
Nut
GU92606508
£1,26 Unit Price incl. VAT
22
Split pin
GU95500222
£1,26 Unit Price incl. VAT
23
Lever return spring
GU94321105
£1,94 Unit Price incl. VAT
24
Gasket ring
2A000378
£2,20 Unit Price incl. VAT

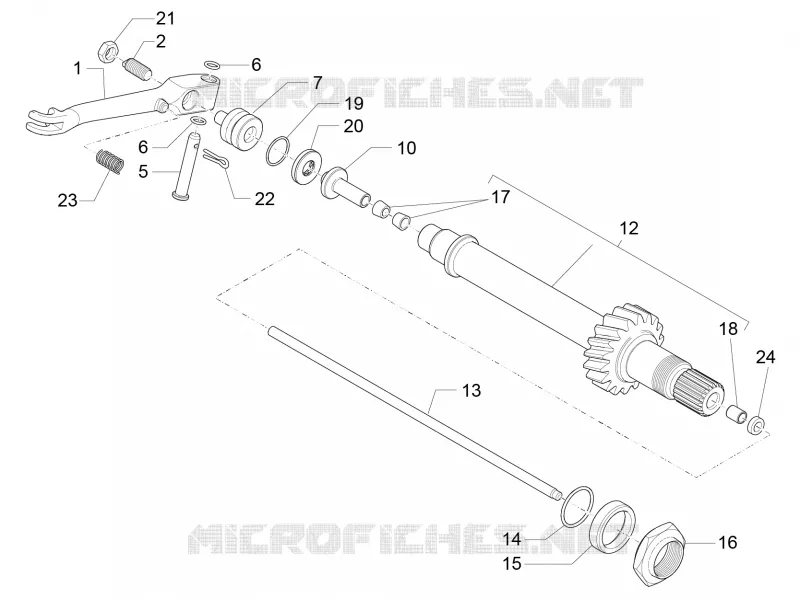

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
