1
Engine displacement
650
2
Model
V65
3
Year
1988
4
Trim
V 65 Polizia/PA NuovoTipo
5
Parts Catalog
Saprisa battery - alternator
6
Parts Diagram
Parts Catalog
by
Saddlebags-rear bumper
Saprisa battery - alternator
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
24
25
26
27
29
29
30
31
32
33
34
35
36
37
1
Tyre
0000000
Not Available
2
Float chamber
GU14707000
Not Available
3
Bracket
GU19704800
£44,50 Unit Price incl. VAT
4
Cap
GU14717600
£3,04 Unit Price incl. VAT
5
HT coil
GU31716560
£162,73 Unit Price incl. VAT
6
screw
GU98620240
Not Available
7
Spacer
GU91180721
£5,05 Unit Price incl. VAT
8
Sparkplug cap NGK
GU30717410
Not Available
8
Sparkplug cap
GU14717400
Not Available
9
Spark plug NGK B8ES
GU31717060
Not Available
10
Generator SAPRISA
GU28712400
Not Available
11
Connector SAPRISA
GU28712500
£10,27 Unit Price incl. VAT
12
Cap
GU19707100
£12,65 Unit Price incl. VAT
13
Wire
GU14748450
Not Available
14
screw
GU28712459
Not Available
15
Nut
GU92602208
Not Available
16
Captive nut
GU92660501
£0,96 Unit Price incl. VAT
17
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
18
Voltage regulator SAPRISA
GU28703800
Not Available
19
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
20
Washer
GU95004208
£0,70 Unit Price incl. VAT
21
screw
GU98622216
£0,91 Unit Price incl. VAT
22
Lock kit BOSCH
GU23736891
Not Available
24
screw
GU98290512
Not Available
25
Washer
GU95000205
£0,96 Unit Price incl. VAT
26
Phase/revolution sensor
GU29722270
Not Available
27
Hex socket screw
GU98622318
£0,61 Unit Price incl. VAT
29
Rotor
GU27721037
Not Available
29
Rotor
GU27721063
Not Available
30
Notched washer
GU95021105
£1,26 Unit Price incl. VAT
31
screw
GU98620250
Not Available
32
Wire
GU19748000
Not Available
33
Cap
GU19707100
£12,65 Unit Price incl. VAT
34
Hex screw
GU98052435
£2,04 Unit Price incl. VAT
35
Guard
GU19733350
Not Available
36
Starter motor Valeo
GU30730711
£557,15 Unit Price incl. VAT
37
Starter motor revision kit
GU14730570
Not Available

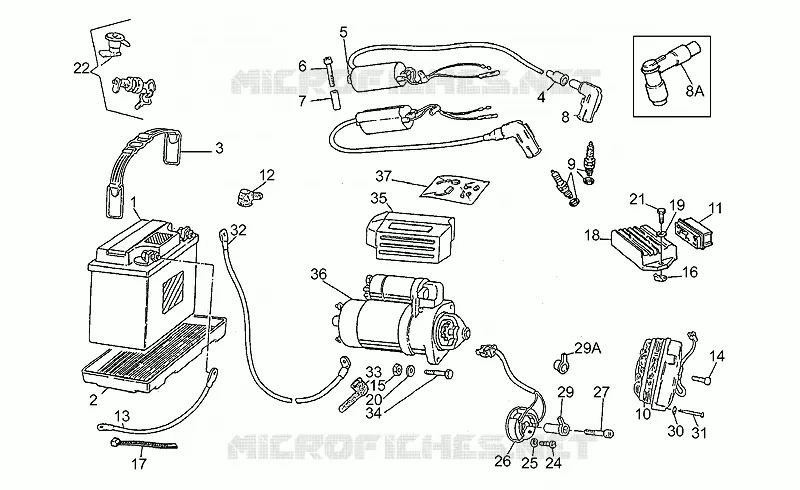

Find the detailed Saprisa battery - alternator MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
