1
Engine displacement
650
2
Model
V65
3
Year
1988
4
Trim
V 65 Polizia/PA NuovoTipo
5
Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Front/rear shock absorber
by
Drive shaft
Frame
1
2
2
3
3
3
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
16
17
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
1
Frame
GU23400190
Not Available
2
Washer 10,2x18x2
GU95004210
£0,96 Unit Price incl. VAT
3
Nut
GU92602210
Not Available
4
Lock
GU19782520
Not Available
5
screw 25 mm
GU98622525
£2,04 Unit Price incl. VAT
6
Washer
GU95120105
£1,04 Unit Price incl. VAT
7
Plate
GU19418200
Not Available
8
screw
GU98054418
Not Available
9
Washer
GU95004208
£0,70 Unit Price incl. VAT
10
Pad
GU19705900
£4,74 Unit Price incl. VAT
11
Captive nut
GU92660601
£1,58 Unit Price incl. VAT
12
Hex screw
GU98054416
£1,02 Unit Price incl. VAT
13
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
14
RH support
GU23401290
Not Available
15
LH support
GU23401390
Not Available
16
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
17
Washer 6,15x11x0,8
GU95004206
Not Available
18
Disc
GU39103500
Not Available
19
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
20
Pin M10x205
GU98110199
£37,12 Unit Price incl. VAT
21
Spacer
GU91181112
£15,18 Unit Price incl. VAT
22
RH support
GU23439190
Not Available
23
LH support
GU23439290
Not Available
24
Pad
GU39103400
£10,22 Unit Price incl. VAT
25
Pad
GU14107100
£6,54 Unit Price incl. VAT
26
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
27
Knob
GU28463045
Not Available
28
Bush
GU28462945
Not Available
29
Spring
GU94321119
Not Available
30
Spacer
GU28462645
Not Available
31
Stop ring
GU90280006
£0,58 Unit Price incl. VAT
32
Threaded pin
GU35782880
Not Available
33
Radio support
GU28463545
Not Available
34
Nut
GU92602208
Not Available
35
screw
GU98052555
£2,44 Unit Price incl. VAT
36
screw
GU98054318
£0,94 Unit Price incl. VAT
37
Release device
GU23478890
Not Available
38
Spacer
GU41432100
Not Available
39
Radio support
GU23463690
Not Available
40
Spacer
GU91180810
Not Available
41
Spring
GU19434000
Not Available
42
Rubber spacer
GU14461400
Not Available
43
screw
GU98622545
£2,00 Unit Price incl. VAT
44
Notched washer
GU95021110
Not Available

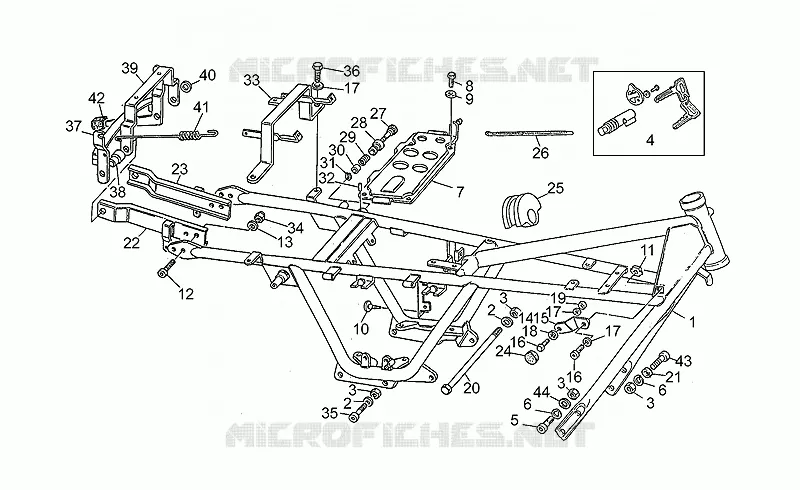

Find the detailed Frame MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for V 65 Polizia/PA NuovoTipo

Saprisa battery - alternator

Saprisa battery - alternator

for V 65 Polizia/PA NuovoTipo from 1988

Saddlebags-rear bumper

Saddlebags-rear bumper

for V 65 Polizia/PA NuovoTipo from 1988

Fairing

Fairing

for V 65 Polizia/PA NuovoTipo from 1988

Body

Body

for V 65 Polizia/PA NuovoTipo from 1988

Bevel gear

Bevel gear

for V 65 Polizia/PA NuovoTipo from 1988

Dashboard-from frame PG17001

Dashboard-from frame PG17001

for V 65 Polizia/PA NuovoTipo from 1988

Dashboard-to frame PG17000

Dashboard-to frame PG17000

for V 65 Polizia/PA NuovoTipo from 1988

Headlight-Horn

Headlight-Horn

for V 65 Polizia/PA NuovoTipo from 1988

Air filter

Air filter

for V 65 Polizia/PA NuovoTipo from 1988

Front fork 35mm

Front fork 35mm

for V 65 Polizia/PA NuovoTipo from 1988

Front fork 38mm

Front fork 38mm

for V 65 Polizia/PA NuovoTipo from 1988

Front fork-from frame PG17001

Front fork-from frame PG17001

for V 65 Polizia/PA NuovoTipo from 1988

Swing arm-from frame PG17001

Swing arm-from frame PG17001

for V 65 Polizia/PA NuovoTipo from 1988

Swing arm-to frame PG17000

Swing arm-to frame PG17000

for V 65 Polizia/PA NuovoTipo from 1988

CEV controls el.system

CEV controls el.system

for V 65 Polizia/PA NuovoTipo from 1988

MAGURA controls el.system

MAGURA controls el.system

for V 65 Polizia/PA NuovoTipo from 1988

VAMA strobe light

VAMA strobe light

for V 65 Polizia/PA NuovoTipo from 1988

H.bar-Cntrls to fr.PG17000

H.bar-Cntrls to fr.PG17000

for V 65 Polizia/PA NuovoTipo from 1988

H.bar-Cntrls from fr.PG17001

H.bar-Cntrls from fr.PG17001

for V 65 Polizia/PA NuovoTipo from 1988

Front/rear mudguards

Front/rear mudguards

for V 65 Polizia/PA NuovoTipo from 1988

Footrests-Stands

Footrests-Stands

for V 65 Polizia/PA NuovoTipo from 1988

Brake caliper

Brake caliper

for V 65 Polizia/PA NuovoTipo from 1988

Front master cilinder

Front master cilinder

for V 65 Polizia/PA NuovoTipo from 1988

Rear master cylinder

Rear master cylinder

for V 65 Polizia/PA NuovoTipo from 1988

Front wh. from frame PG17001

Front wh. from frame PG17001

for V 65 Polizia/PA NuovoTipo from 1988

Front wh. to frame PG17000

Front wh. to frame PG17000

for V 65 Polizia/PA NuovoTipo from 1988

Rear wh. from frame PG17001

Rear wh. from frame PG17001

for V 65 Polizia/PA NuovoTipo from 1988

Rear wh. to frame PG17000

Rear wh. to frame PG17000

for V 65 Polizia/PA NuovoTipo from 1988

Sonora two-tone sirens

Sonora two-tone sirens

for V 65 Polizia/PA NuovoTipo from 1988

Front/rear shock absorber

Front/rear shock absorber

for V 65 Polizia/PA NuovoTipo from 1988

Frame

Frame

for V 65 Polizia/PA NuovoTipo from 1988

Drive shaft

Drive shaft

for V 65 Polizia/PA NuovoTipo from 1988

Fuel supply

Fuel supply

for V 65 Polizia/PA NuovoTipo from 1988

Bosch alternator-regulator

Bosch alternator-regulator

for V 65 Polizia/PA NuovoTipo from 1988

Gear box

Gear box

for V 65 Polizia/PA NuovoTipo from 1988

Carburettors

Carburettors

for V 65 Polizia/PA NuovoTipo from 1988

Crankcase

Crankcase

for V 65 Polizia/PA NuovoTipo from 1988

Timing system

Timing system

for V 65 Polizia/PA NuovoTipo from 1988

Clutch

Clutch

for V 65 Polizia/PA NuovoTipo from 1988

Exhaust unit

Exhaust unit

for V 65 Polizia/PA NuovoTipo from 1988

Valeo starter motor

Valeo starter motor

for V 65 Polizia/PA NuovoTipo from 1988

Oil pump

Oil pump

for V 65 Polizia/PA NuovoTipo from 1988

Transmission cage

Transmission cage

for V 65 Polizia/PA NuovoTipo from 1988

Cylinder head

Cylinder head

for V 65 Polizia/PA NuovoTipo from 1988

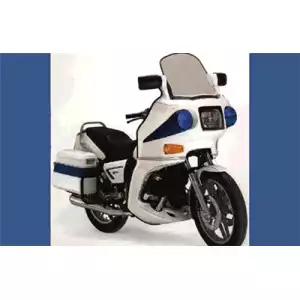

MOTO GUZZI LAVERDA SCARABEO V 65 Polizia/PA NuovoTipo 1988
