Brake caliper for MOTO GUZZI LAVERDA SCARABEO V 65 Polizia/PA NuovoTipo from 1989

Free shipping for all orders to United Kingdom over £150! See conditions.

Brake caliper

1

Rear brake caliper

GU23653011

Not Available

2

screw

GU98622422

Not Available

3

Spring washer 8x15x0,3

GU61270300

£1,70 Unit Price incl. VAT

4

Nut

GU92602208

Not Available

6

Connection

GU19668000

£40,19 Unit Price incl. VAT

7

Brake hose

GU19658660

£68,81 Unit Price incl. VAT

8

Oil pipe screw *

GU95990028

£14,99 Unit Price incl. VAT

9

Gasket

GU25656100

£1,57 Unit Price incl. VAT

10

Stop switch

GU14657050

£48,26 Unit Price incl. VAT

11

Cap

GU12735100

£2,12 Unit Price incl. VAT

12

Pipe

GU19658735

Not Available

13

Eyelet

GU19436500

Not Available

14

Guard

GU17573860

Not Available

15

Hose clamp 3,6x20,6

GU14609650

£1,02 Unit Price incl. VAT

16

Brake hose

GU17658860

£46,37 Unit Price incl. VAT

17

RH front brake caliper Grimeca

GU31652265

Not Available

18

Brake caliper cover BREMBO

GU39654700

Not Available

18

Brake caliper cover GRIMECA

GU31654765

Not Available

19

screw

GU98622422

Not Available

20

Pads pair BREMBO

GU27654610

£16,44 Unit Price incl. VAT

20

Pads pair GRIMECA

GU31654665

Not Available

21

Washer 8,5X18X0,5

GU95100250

£18,16 Unit Price incl. VAT

21

Washer 8,5X18X0,8

GU95100251

Not Available

22

Brake caliper rev. kit GRIMECA

GU66659031

Not Available

22

Brake caliper rev. kit BREMBO

GU39659000

£34,49 Unit Price incl. VAT

23

Pins+spring BREMBO

GU39659100

£13,42 Unit Price incl. VAT

23

Pins+spring BREMBO

GU31659160

Not Available

24

Bleeder+cap GRIMECA

GU31659265

£12,54 Unit Price incl. VAT

24

Bleeder+cap BREMBO D.10

GU31659260

£16,82 Unit Price incl. VAT

24

Bleeder+cap BREMBO D.6

GU65659200

£17,86 Unit Price incl. VAT

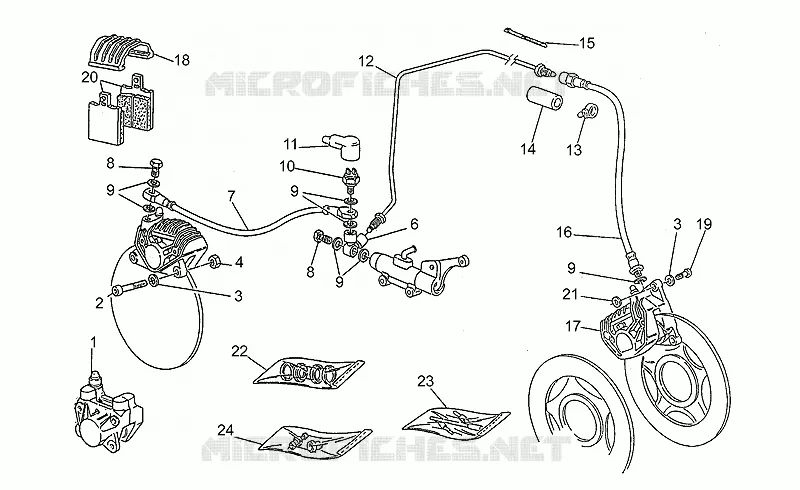

Find the detailed Brake caliper MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
