1
Engine displacement
650
2
Model
V65
3
Year
1989
4
Trim
V 65 Polizia/PA NuovoTipo
5
Parts Catalog
Headlight-Horn
6
Parts Diagram
Parts Catalog
Dashboard-to frame PG17000
by
Air filter
Headlight-Horn
1
2
3
4
5
6
7
8
10
11
12
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
30
1
Headlight
GU28740560
Not Available
2
Lamp
GU93450119
Not Available
3
Lamp 12V-55/60W
GU93450232
£23,02 Unit Price incl. VAT
4
Nut
GU92602205
£0,96 Unit Price incl. VAT
5
Notched washer
GU95021105
£1,26 Unit Price incl. VAT
6
Lampholder
GU14756255
Not Available
7
Taillight
GU27740985
Not Available
8
Lamp
GU93450224
£7,44 Unit Price incl. VAT
10
Horn
GU61743700
Not Available
11
Rear turn indicator
GU28751645
Not Available
12
Lamp
GU93450127
£3,11 Unit Price incl. VAT
13
Turn indicator lens
GU28753745
Not Available
14
Rear turn indicator
GU28751645
Not Available
15
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
16
Washer
GU95100060
Not Available
17
Additional halogen light, blue CPU
GU23743392
Not Available
17
Halogen light, amber
GU23743393
Not Available
18
Light frame
GU23742890
Not Available
19
Self-tap screw
GU99200316
Not Available
20
O-ring
GU90706035
£1,32 Unit Price incl. VAT
21
plate
GU23436692
Not Available
22
Front turn signal guard
GU17571665
Not Available
23
Gasket
GU17750765
£30,88 Unit Price incl. VAT
24
Bracket
GU23751395
Not Available
25
screw
GU98304014
Not Available
26
Front turn indicator
GU23999594
Not Available
30
Front turn indicator
GU23750690
Not Available

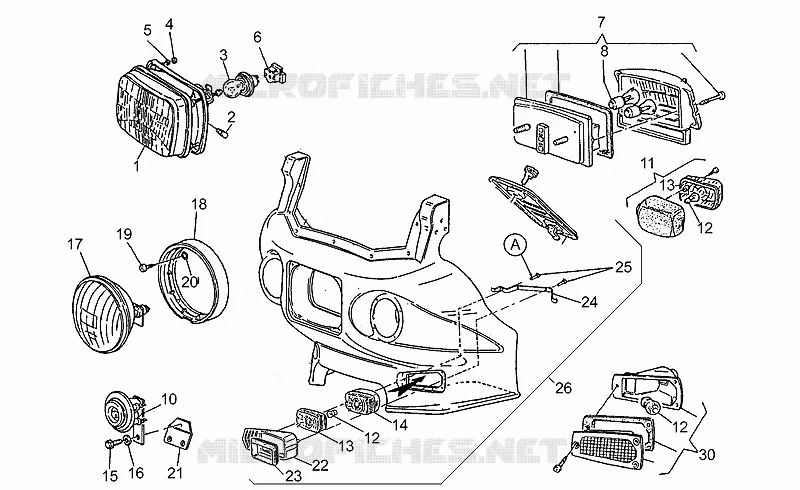

Find the detailed Headlight-Horn MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
