1
Engine displacement
500
2
Model
V50
3
Year
1997
4
Trim
V 50 PA
5
Parts Catalog
Side cases
6
Parts Diagram
Parts Catalog
Battery
by
Front body - Front fairing
Side cases
1
2
3
4
5
6
7
7
8
8
8
9
9
9
9
10
11
12
13
13
14
14
15
16
17
18
19
20
21
22
23
1
RH side bag assy, sky blue
GU28482545
Not Available
1
RH side case assy., Rome blue
GU89000114
Not Available
1
RH side case assy.,white/black
GU23482590003
Not Available
1
RH side case assy., white
GU23482590
Not Available
1
RH side case assy., white/blue
GU23482590004
Not Available
2
LH side case assy., white
GU23485790
Not Available
2
LH side case assy.,white/black
GU23485790003
Not Available
2
LH side bag assy, sky blue
GU28485745
£571,24 Unit Price incl. VAT
2
LH side case assy., white/blue
GU23485790004
Not Available
2
LH side case assy., Rome blue
GU89000115
Not Available
3
Cover gasket
GU28483946
Not Available
4
Pad
GU19705900
£4,74 Unit Price incl. VAT
5
RH support
GU28485045
Not Available
6
LH support
GU28486545
Not Available
7
Hex screw
GU98054320
£0,96 Unit Price incl. VAT
8
Washer 6,4x12x1,2
GU95100141
£1,02 Unit Price incl. VAT
9
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
10
Nut
GU92602206
£1,68 Unit Price incl. VAT
11
Rubber spacer
GU28584845
Not Available
12
Spacer
GU31436415
Not Available
13
Spring washer
GU95021108
£1,13 Unit Price incl. VAT
14
Nut
GU92602208
Not Available
15
Rubber spacer
GU93180706
£3,06 Unit Price incl. VAT
16
Notched washer
GU95021106
Not Available
17
Lock
GU28489945
£51,91 Unit Price incl. VAT
18
Lock kit BOSCH
GU23736891
Not Available
19
Fixing plate
GU19451525
Not Available
20
RH front bumper
GU19450325
Not Available
21
Washer
GU95020108
Not Available
22
screw
GU98610440
Not Available
23
LH front bumper
GU19450425
£219,20 Unit Price incl. VAT

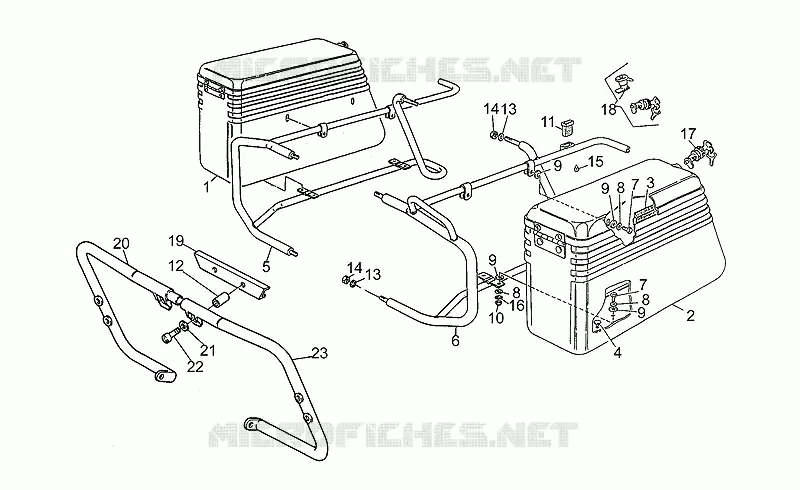

Find the detailed Side cases MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
