1
Engine displacement
500
2
Model
V50
3
Year
1997
4
Trim
V 50 PA
5
Parts Catalog
Headlight-Horn
6
Parts Diagram
Parts Catalog
Dashboard
by
Taillight
Headlight-Horn
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
Headlight
GU28740560
Not Available
2
Lamp 12V-55/60W
GU93450232
£23,02 Unit Price incl. VAT
3
Lamp
GU93450119
Not Available
4
Lampholder
GU14756255
Not Available
5
Gasket
GU00823933090
£14,83 Unit Price incl. VAT
6
Nut
GU92602205
£0,96 Unit Price incl. VAT
7
Notched washer
GU95021105
£1,26 Unit Price incl. VAT
8
Front turn indicator
GU30750610
Not Available
9
Turn indicator lens
GU23753710
Not Available
10
Lamp
GU93450127
£3,11 Unit Price incl. VAT
11
Turn indicator
GU30751410
Not Available
12
Spacer
GU91180626
Not Available
13
screw
GU99210445
Not Available
14
Treble horn
GU28743760
Not Available
15
Bass horn
GU28743761
Not Available
16
Hex screw
GU98054316
£0,49 Unit Price incl. VAT
17
Spacer
GU91180605
£10,21 Unit Price incl. VAT
18
Washer
GU95000206
£1,02 Unit Price incl. VAT
19
Dado autobloccante M6x1
GU92630206
£2,48 Unit Price incl. VAT
20
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
21
Halogen light assy., blue CPU
GU31743335
£316,50 Unit Price incl. VAT
22
Additional halogen light, blue CPU
GU23743392
Not Available
23
Light frame
GU23742890
Not Available
24
RH clamp
GU19728015
Not Available
25
LH clamp
GU19728115
£120,77 Unit Price incl. VAT
26
Screw
GU98250630
£1,43 Unit Price incl. VAT
27
screw
GU98290520
Not Available
28
Nut
GU92630105
£1,68 Unit Price incl. VAT
29
Spacer
GU91180615
Not Available
30
Washer
GU95100123
£1,49 Unit Price incl. VAT
31
Nut
GU92630207
£1,49 Unit Price incl. VAT
32
Gasket
GU19743815
Not Available

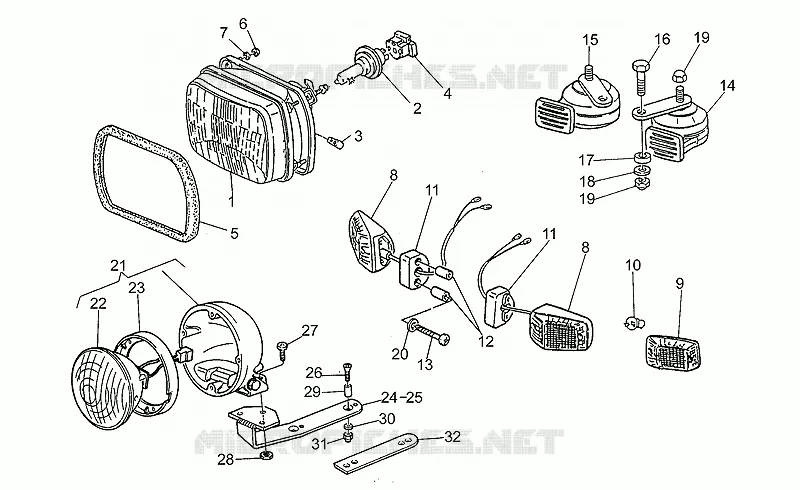

Find the detailed Headlight-Horn MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
