Engine displacement
350
2
Model
V35
3
Year
1990
4
Trim
V 35 Florida
5
Parts Catalog
Electrical system
6
Parts Diagram
Parts Catalog
Swing arm
by
RH Front brake system
Electrical system
1
2
3
4
5
6
7
7
8
8
9
9
9
10
11
12
13
14
15
16
16
16
16
17
18
19
20
20
1
Electrical system
GU23747170
Not Available
2
Turn indicator switch
GU28745760
Not Available
3
Electronic control unit
GU23721494
£434,27 Unit Price incl. VAT
4
Flexible support
GU27723835
£3,49 Unit Price incl. VAT
5
H.T. wiring
GU31722140
£65,52 Unit Price incl. VAT
6
Flasher unit
GU17750520
Not Available
7
screw
GU98054212
£0,47 Unit Price incl. VAT
8
Washer
GU95000205
£0,96 Unit Price incl. VAT
9
Nut
GU92602205
£0,96 Unit Price incl. VAT
10
Rubber fuse box
GU23743010
Not Available
11
Fuse 15A
GU28742560
Not Available
12
screw
GU98620212
Not Available
13
Alternator-regulator wiring
GU19725820
Not Available
14
Starter relay
GU19732500
£27,72 Unit Price incl. VAT
15
Hose clamp
GU61609630
Not Available
15
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
16
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
17
U-bolt
GU93301315
Not Available
18
Taillight wiring harn.
GU23747310
Not Available
19
Wire
GU23748210
Not Available
20
Condenser
GU27710435
Not Available
20
Wire
GU23748310
Not Available

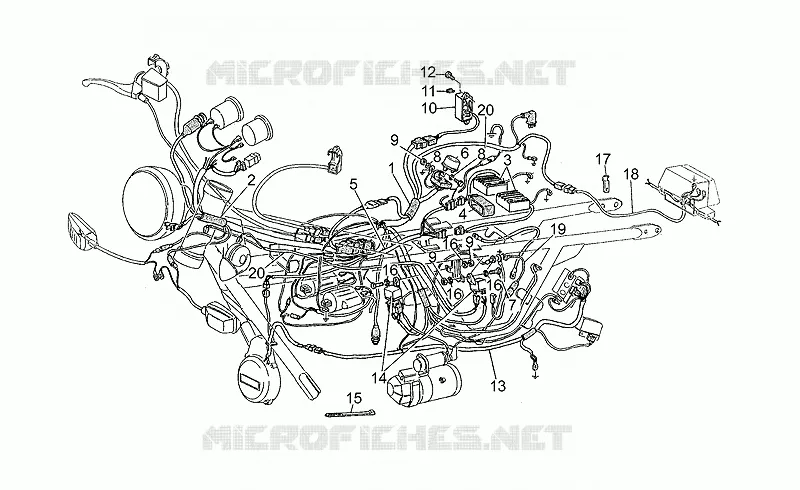

Find the detailed Electrical system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
