1
Engine displacement
350
2
Model
V35
3
Year
1990
4
Trim
V 35 Florida
5
Parts Catalog
Accessories II
6
Parts Diagram
Parts Catalog
Accessories
by
Accessories II
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
15
15
15
15
15
16
16
16
16
16
16
16
17
17
17
17
18
18
19
20
21
22
1
Hard saddlebag
GU23482572
Not Available
2
Name plate "Moto Guzzi"
GU29482060
Not Available
3
plate
GU23475772
Not Available
4
U-bolt
GU23475572
Not Available
5
Front bracket
GU23481372
Not Available
6
RH rear bracket
GU23481272
Not Available
7
LH rear bracket
GU23481472
Not Available
8
RH support
GU30485010
Not Available
9
LH support
GU30486510
Not Available
10
screw
GU98610450
Not Available
11
screw
GU98610470
Not Available
12
Spacer
GU91180917
Not Available
13
Nut
GU92630108
£1,02 Unit Price incl. VAT
14
Lock
GU30489910
Not Available
15
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
16
Washer
GU95000206
£1,02 Unit Price incl. VAT
17
screw
GU98054318
£0,94 Unit Price incl. VAT
18
Rubber spacer
GU93110060
£1,09 Unit Price incl. VAT
19
Cases kit GIVI
GU23999272
Not Available
20
RH support
GU23485072
Not Available
21
LH support
GU23486572
Not Available
22
T bush
GU29530580
Not Available

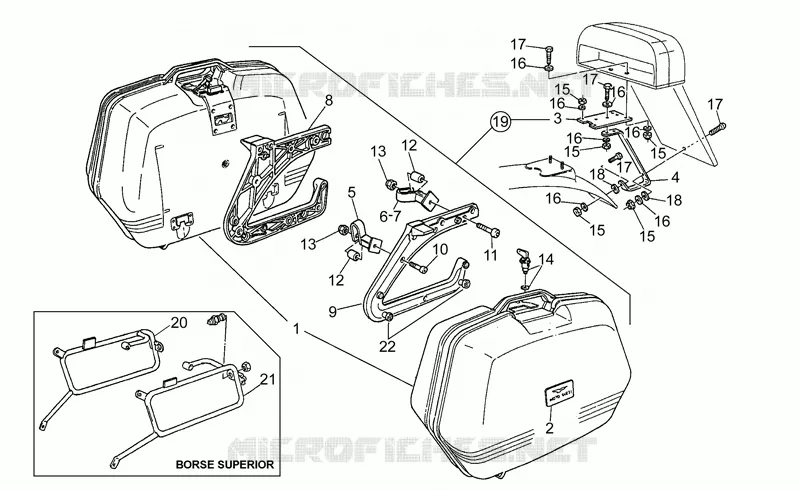

Find the detailed Accessories II MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
