Parts Catalog
Fuel supply
6
Parts Diagram
Parts Catalog
Digiplex ignition
by
Exhaust unit
Fuel supply
1
2
3
4
5
6
7
8
8
9
9
10
11
11
12
13
14
15
16
17
1
Carburettor RH VHBZ 20FD
GU19112615
Not Available
1
Carburettor RH PHBH 28BD
GU19112618
£445,88 Unit Price incl. VAT
2
Carburettor LH VHBZ 20FS
GU19112616
Not Available
2
Carburettor LH PHBH 28BS
GU19112617
Not Available
3
RH manifold
GU31115082
Not Available
3
RH manifold
GU19115035
Not Available
4
LH manifold
GU31115083
Not Available
4
LH manifold
GU19115036
Not Available
5
Gasket
GU19115520
£2,08 Unit Price incl. VAT
6
Vis
GU98310610
£1,61 Unit Price incl. VAT
7
Rondelle
GU95100116
£1,60 Unit Price incl. VAT
8
screw
GU98822325
Not Available
9
Rondelle spéciale
GU61013800
£1,26 Unit Price incl. VAT
10
Hose
GU31114380
Not Available
10
Hose
GU19114320
£12,14 Unit Price incl. VAT
11
Hose clamp
GU93505031
Not Available
11
Hose clamp 32X52X8
GU93305032
Not Available
12
Gasket ring
GU19114680
Not Available
12
Gasket ring
GU90706315
Not Available
13
Manifold
GU19114480
Not Available
13
Manifold
GU19114400
Not Available
14
Hose clamp
GU19718000
Not Available
15
Rondelle
GU95004205
£1,13 Unit Price incl. VAT
16
VIS
GU98054220
£1,18 Unit Price incl. VAT
16
screw
GU98054214
Not Available
17
Collier 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT

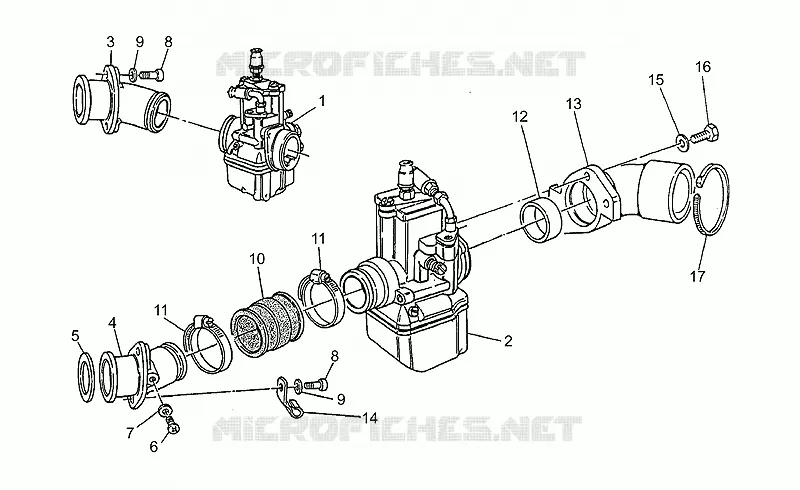

Find the detailed Fuel supply MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
