1
Engine displacement
350
2
Model
V35
3
Year
1994
4
Trim
V 35 Carabinieri/PA
5
Parts Catalog

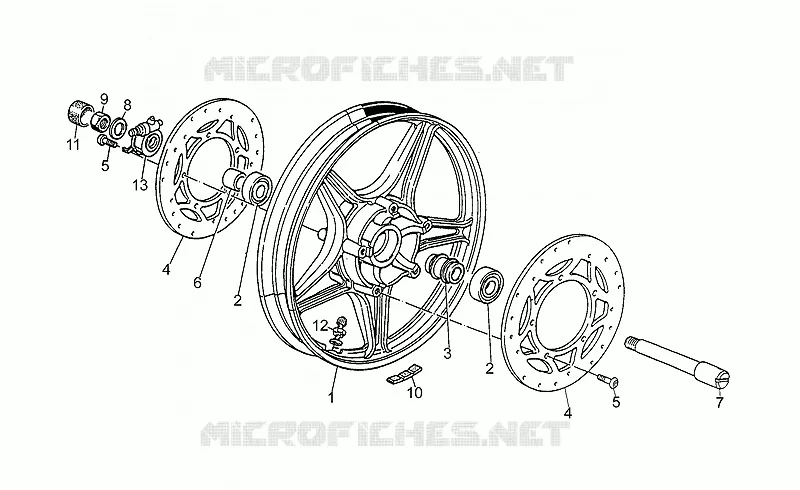

Front wheel
6
Parts Diagram
Parts Catalog
Rear master cylinder
by
Rear wheel
Front wheel
1
2
2
3
4
4
5
5
6
7
8
9
10
11
12
13
1
Front wheel, grey
GU14610370
Not Available
2
Bearing
GU92204221
£65,62 Unit Price incl. VAT
3
Bearing internal spacer
GU17615360
£78,68 Unit Price incl. VAT
4
Brake disc
GU28613300
Not Available
5
screw
GU98230825
£7,98 Unit Price incl. VAT
6
Spacer
GU31616316
Not Available
7
Front wheel spindle
GU28614100
£214,31 Unit Price incl. VAT
8
Washer 17X27X2
GU95004217
£3,86 Unit Price incl. VAT
9
Nut M16X1,5
GU92602516
Not Available
10
Counterweight
GU14616150
£18,94 Unit Price incl. VAT
11
Cover
GU62616800
£10,14 Unit Price incl. VAT
12
Air valve
GU28617760
£13,82 Unit Price incl. VAT
13
Odometer gear
GU31762561
Not Available

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
