1
Engine displacement
350
2
Model
V35
3
Year
1994
4
Trim
V 35 Carabinieri/PA
5
Parts Catalog
Air filter
6
Parts Diagram
Parts Catalog
Taillight
by
Front fork
Air filter
27
26
25
24
23
22
21
21
20
20
20
19
18
17
16
15
14
13
12
11
10
9
9
8
7
6
4
5
3
2
1
1
Intake manifold
GU19114300
Not Available
2
Hose clamp
GU93305092
£14,63 Unit Price incl. VAT
3
Pipe
GU17114650
£13,68 Unit Price incl. VAT
4
pipe 5X9
GU00823944050
£18,78 Unit Price incl. VAT
5
Hose clamp 3,6x20,6
GU14609650
£1,02 Unit Price incl. VAT
6
Air filter support
GU31155780
Not Available
6
Air filter support
GU19155775
Not Available
7
Front hose
GU19156701
Not Available
8
Gasket
GU19113900
Not Available
9
Gasket ring
GU90706552
£1,20 Unit Price incl. VAT
10
Rear hose
GU19156900
£15,58 Unit Price incl. VAT
11
Breather pipe
GU19156001
£61,62 Unit Price incl. VAT
12
Ring
GU17113450
£2,66 Unit Price incl. VAT
13
Air filter
GU17113651
£20,29 Unit Price incl. VAT
14
Filter cover
GU17114050
Not Available
15
Support plate
GU27114120
Not Available
16
Washer 5,25x14x1,5
GU95100059
£1,58 Unit Price incl. VAT
17
Nut
GU92670305
£2,38 Unit Price incl. VAT
18
Housing
GU31153481
Not Available
19
Breather
GU23159671
£54,46 Unit Price incl. VAT
19
Breather
GU27159661
Not Available
20
Hose clamp
GU93305018
£10,12 Unit Price incl. VAT
21
Hose clamp
GU61108400
£0,72 Unit Price incl. VAT
22
Breather
GU27159360
Not Available
23
Pipe
GU27157420
Not Available
23
Pipe
GU30157430
Not Available
24
Gasket 8,25x15x1
GU12154200
£2,45 Unit Price incl. VAT
24
Gasket
GU90714082
£1,08 Unit Price incl. VAT
25
Thermal sheath
GU00823923140
£45,62 Unit Price incl. VAT
26
Hose clamp
GU61609630
Not Available
27
Lockup rubber
GU19433000
Not Available

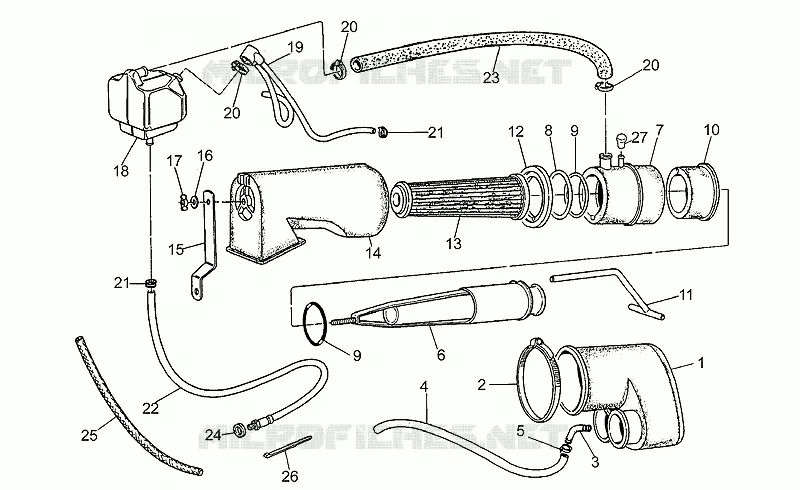

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
