Engine displacement
1100
2
Model
V11
3
Year
2001
4
Trim
V 11 Sport - Mandello
5
Parts Catalog
Rear mudguard
6
Parts Diagram
Parts Catalog
Front mudguard
by
Foot rests - Lateral stand
Rear mudguard
1
2
2
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
12
12
12
13
13
1
Rear mudguard
GU01437030
Not Available
2
screw
GU98220520
Not Available
3
RH pin cover
GU01546330
£28,54 Unit Price incl. VAT
3
RH pin cover, black
GU01546340
£28,54 Unit Price incl. VAT
4
RH side panel, green
GU01570232
£358,75 Unit Price incl. VAT
4
RH body panel blank
GU01570230
£140,83 Unit Price incl. VAT
4
RH side panel, silver
GU01570233
Not Available
4
RH side panel, black
GU01570234
Not Available
4
RH side panel, grey
GU01570240
Not Available
5
LH side panel, silver
GU01570433
£235,37 Unit Price incl. VAT
5
LH body panel blank
GU01570430
£140,83 Unit Price incl. VAT
5
LH side panel, green
GU01570432
£331,12 Unit Price incl. VAT
5
LH side panel, black
GU01570434
Not Available
5
LH side panel, grey
GU01570440
£235,37 Unit Price incl. VAT
6
Name plate
GU01576040
Not Available
6
Name plate
GU01576031
Not Available
7
Rubber spacer
GU93180710
Not Available
8
Bush
GU01576131
£8,02 Unit Price incl. VAT
9
Nylon washer
GU01577830
£1,26 Unit Price incl. VAT
10
screw
GU98230515
Not Available
11
LH pin cover, black
GU01546440
£17,06 Unit Price incl. VAT
11
LH pin cover, dark grey
GU01546430
£26,33 Unit Price incl. VAT
12
Bushing
GU03742030
£5,23 Unit Price incl. VAT
13
Decal "V11 Le Mans"
GU01575940
£32,08 Unit Price incl. VAT

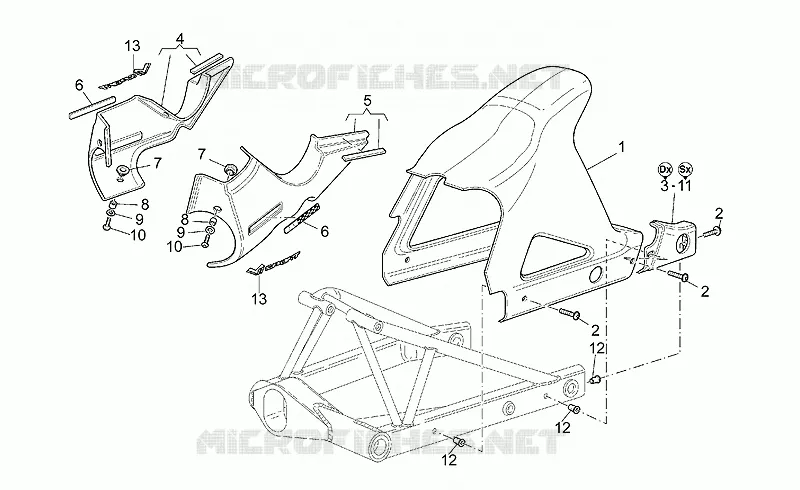

Find the detailed Rear mudguard MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
