Engine displacement
1100
2
Model
V11
3
Year
2001
4
Trim
V 11 Sport - Mandello
5
Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Rear body
by
Drive shaft - Cylinder - Piston
Frame
1
2
3
4
4
5
5
5
5
6
7
8
9
10
10
11
12
13
14
15
16
17
17
17
18
19
20
21
22
23
24
25
1
Frame
GU01400130
Not Available
1
Frame assy black
GU01400140
Not Available
2
Cradle, red
GU01420230
£972,38 Unit Price incl. VAT
2
Cradle, black
GU01420240
Not Available
3
Guard decal
GU02931600
£2,39 Unit Price incl. VAT
4
screw
GU98610525
£1,73 Unit Price incl. VAT
5
Washer 10,5x16x1
GU19149800
£0,38 Unit Price incl. VAT
6
RH plate
GU01415740
Not Available
6
RH plate
GU01415730
£141,91 Unit Price incl. VAT
7
Plate connection frame
GU01420140
Not Available
7
Plate connection frame
GU01420130
Not Available
8
LH plate
GU01415840
Not Available
8
LH Plate red
GU01415830
£149,99 Unit Price incl. VAT
9
Stud bolt
GU30419601
£40,84 Unit Price incl. VAT
10
Nut
GU92660113
£1,32 Unit Price incl. VAT
11
screw
GU98231040
£7,50 Unit Price incl. VAT
12
screw
GU98231035
£10,21 Unit Price incl. VAT
12
screw
GU98231030
£10,08 Unit Price incl. VAT
13
Nut M10X1,5
GU92630110
£4,01 Unit Price incl. VAT
14
screw
GU98072595
£6,80 Unit Price incl. VAT
15
plate
GU01202830
Not Available
16
screw
GU98622420
Not Available
17
Washer
GU95004208
£0,70 Unit Price incl. VAT
18
Nut
GU92630708
£13,84 Unit Price incl. VAT
19
screw sp.65mm
GU98072465
Not Available
19
screw sp.60mm
GU98072460
Not Available
20
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
21
Decal "Aquilia"
GU01517700
£35,30 Unit Price incl. VAT
22
screw
GU98612635
£4,66 Unit Price incl. VAT
23
Washer 13x18x1,7
GU30217900
£1,58 Unit Price incl. VAT
24
Nut M10x1,5
GU92630510
£1,58 Unit Price incl. VAT
25
Cover
GU01765630
Not Available

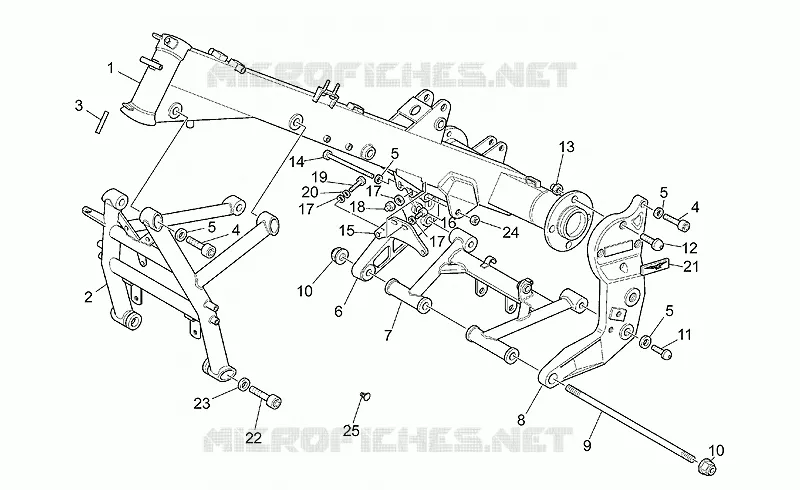

Find the detailed Frame MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
