Engine displacement
1100
2
Model
V11
3
Year
2002
4
Trim
V 11 Le Mans
5
Parts Catalog
Driven shaft
6
Parts Diagram
Parts Catalog
Front lights
by
Supply - Oil pump
Driven shaft
1
2
2
3
4
5
5
5
5
5
6
7
8
8
9
10
11
11
12
13
13
14
14
15
16
17
18
19
19
20
21
1
Upper lay shaft
GU04213600
Not Available
2
Hose 3a-5a-4a-6a
GU04214900
Not Available
3
Gear 5a vel.Z=28
GU04214000
£531,60 Unit Price incl. VAT
4
Gear 1a vel.Z=36
GU04214200
£59,99 Unit Price incl. VAT
5
Roller cage 28x33x13
GU92252813
£36,65 Unit Price incl. VAT
6
Roller cage 28x33x17
GU92252817
£29,42 Unit Price incl. VAT
7
Hose
GU04232500
£239,90 Unit Price incl. VAT
8
Moveable hose 1a-2a
GU04213900
£75,73 Unit Price incl. VAT
9
Gear 3a vel.Z=30
GU04214700
Not Available
10
Washer
GU04214300
£26,46 Unit Price incl. VAT
11
Safety washer
GU04055000
£3,42 Unit Price incl. VAT
12
Ring nut
GU04055100
£15,97 Unit Price incl. VAT
13
Washer 2 mm
GU10214304
£10,00 Unit Price incl. VAT
14
Lower lay shaft
GU04220700
£353,02 Unit Price incl. VAT
15
Gear 4a vel.Z=30
GU04215000
£536,96 Unit Price incl. VAT
16
Gear 6a vel.Z=23
GU04220500
Not Available
17
Gear 2a vel.Z=32
GU04214400
£346,12 Unit Price incl. VAT
18
Hose
GU04221400
£57,68 Unit Price incl. VAT
19
Drive gears Z=19
GU01217530
£43,84 Unit Price incl. VAT
20
Circlip
GU90271228
£3,22 Unit Price incl. VAT
21
Thrust washer
GU04215401
£8,02 Unit Price incl. VAT

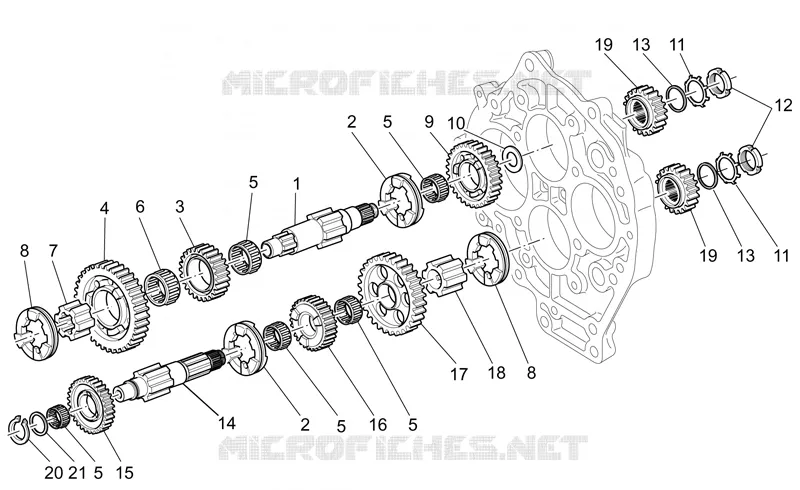

Find the detailed Driven shaft MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
