Engine displacement
1100
2
Model
V11
3
Year
2002
4
Trim
V 11 Le Mans
5
Parts Catalog
Front lights
6
Parts Diagram
Parts Catalog
Handlebar - Controls
by
Driven shaft
Front lights
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
36
1
Headlight
GU01740560
Not Available
1
Headlight
GU01740567
Not Available
1
Cpl headlightsteering headligh
GU01740565
Not Available
2
Wiring
GU01757660
£26,82 Unit Price incl. VAT
3
Spacer
GU91180834
£7,50 Unit Price incl. VAT
4
Nylon bush
GU01577160
Not Available
5
Lamp 12V-55/60W
GU93450232
£23,02 Unit Price incl. VAT
6
screw
GU98082440
£0,91 Unit Price incl. VAT
7
Lamp
GU93450105
Not Available
8
Headlight gasket
GU01578961
Not Available
9
Adjuster screw
GU01740367
£24,04 Unit Price incl. VAT
10
Spring
GU94321116
£15,95 Unit Price incl. VAT
11
screw
GU98680480
£4,98 Unit Price incl. VAT
12
Instrum.holder frame
GU01578660
Not Available
13
Nut
GU92630108
£1,02 Unit Price incl. VAT
14
Rear LH turn indicator
GU02750600
Not Available
15
Rear RH turn indicator
GU02750601
£38,65 Unit Price incl. VAT
16
Lamp
GU93450127
£3,11 Unit Price incl. VAT
17
Turn indicator lens
GU02753700
Not Available
18
Hex socket screw M6x20
GU98370621
£1,02 Unit Price incl. VAT
19
Washer 5,3x10x0,5
GU95100121
Not Available
20
Electric hom H
GU01743790
Not Available
21
Electric hom L
GU01743791
Not Available
22
Front light adj.insert
GU01740366
£5,23 Unit Price incl. VAT
23
Reflector, amber
GU01781600
£30,58 Unit Price incl. VAT
24
plate
GU01574960
Not Available
25
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
26
Hex socket screw M6x20
GU98682320
£1,26 Unit Price incl. VAT
27
Washer 6,4x10x0,7
GU14217901
Not Available
28
Washer 6,4x12x1,2
GU95008306
£0,58 Unit Price incl. VAT
29
Spacer
GU91180605
£10,21 Unit Price incl. VAT
30
Captive nut
GU92660501
£0,96 Unit Price incl. VAT
31
Light assembly
GU01740460
Not Available
32
Light assembly
GU01740465
Not Available
33
Light assembly
GU01740467
Not Available
34
Chromed ring nut
GU01740360
Not Available
35
Cap rear black
GU01740260
Not Available
36
Bracket
GU01744200
£25,09 Unit Price incl. VAT

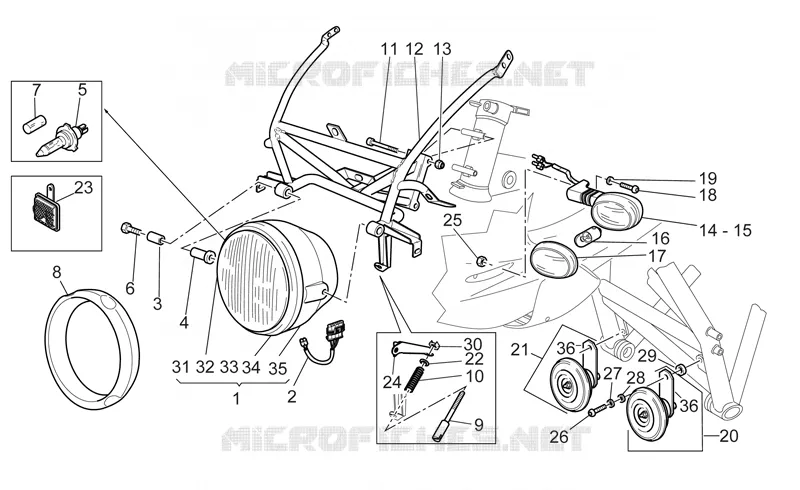

Find the detailed Front lights MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
