Parts Catalog
Lateral stand - Foot rests
6
Parts Diagram
Parts Catalog
Specific tools I
by
Handlebar - Controls
Lateral stand - Foot rests
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
1
Lateral stand
GU01432190
£131,50 Unit Price incl. VAT
2
plate
GU01433460
Not Available
3
screw
GU30432801
£40,46 Unit Price incl. VAT
4
Special washer
GU95021114
Not Available
5
screw
GU01433201
£38,17 Unit Price incl. VAT
6
Plate
GU01432730
£15,37 Unit Price incl. VAT
7
Outer spring
GU30434001
£24,11 Unit Price incl. VAT
8
Washer
GU95100120
Not Available
9
Inner spring
GU30434000
£17,05 Unit Price incl. VAT
10
Plate
GU01433600
£20,48 Unit Price incl. VAT
11
Pad
GU93242007
£17,77 Unit Price incl. VAT
12
Maintenance
GU30442705
£37,67 Unit Price incl. VAT
13
screw
GU98251040
£7,50 Unit Price incl. VAT
14
Nut
GU92640510
£2,33 Unit Price incl. VAT
15
RH Foot rests
GU30440705
Not Available
16
LH Foot rests
GU30441805
Not Available
17
Pin
GU30441005
Not Available
18
Return spring
GU30441105
Not Available
19
Pin
GU30442205
£25,78 Unit Price incl. VAT
20
Stop ring
GU90280006
£0,58 Unit Price incl. VAT
21
RH bracket matte black
GU01444640
£207,67 Unit Price incl. VAT
22
LH bracket matte black
GU01444740
£207,67 Unit Price incl. VAT
23
Rear footrest, RH
GU30442405
£89,47 Unit Price incl. VAT
24
Rear footrest, LH
GU30442805
£89,47 Unit Price incl. VAT
25
Footrest plate
GU30443105
£4,32 Unit Price incl. VAT
26
Spring
GU94321062
£2,45 Unit Price incl. VAT
27
Ball
GU92295706
£0,92 Unit Price incl. VAT
28
Plate
GU30441605
£3,41 Unit Price incl. VAT
29
Nut
GU92630310
£1,50 Unit Price incl. VAT
30
Flanged nut M6
GU92650036
£1,02 Unit Price incl. VAT
31
Lever
GU01431930
£33,71 Unit Price incl. VAT
32
Hex socket screw
GU98350318
£0,96 Unit Price incl. VAT
33
Washer 6,4x10x0,7
GU14217901
Not Available
34
screw
GU97040220
£1,18 Unit Price incl. VAT
35
Nut
GU92606205
£1,02 Unit Price incl. VAT
36
Plate
GU01433860
£31,69 Unit Price incl. VAT
37
Switch
GU01759130
£47,34 Unit Price incl. VAT
38
Nut
GU92606508
£1,26 Unit Price incl. VAT
39
Flange
GU01431830
£2,39 Unit Price incl. VAT
40
screw
GU98682418
£2,14 Unit Price incl. VAT
41
Washer
GU95005311
£0,68 Unit Price incl. VAT
42
screw
GU98882425
Not Available
43
Washer 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT

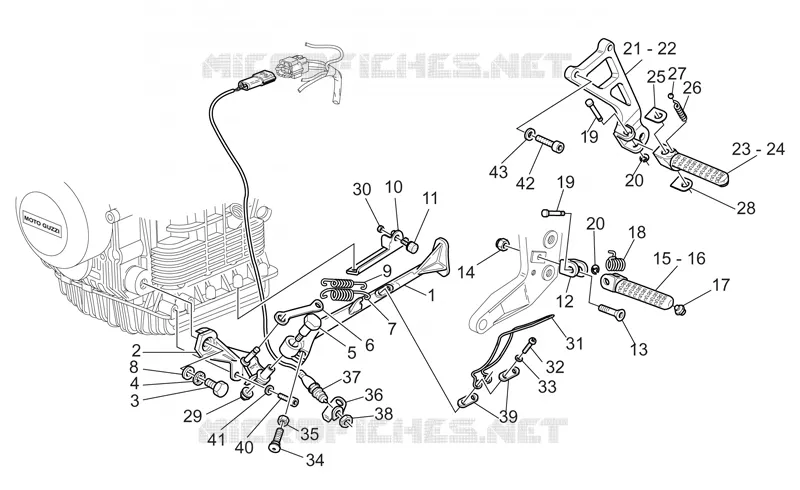

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
