Engine displacement
1100
2
Model
V11
3
Year
2005
4
Trim
V 11 Cafè - Ballabio
5
Parts Catalog
Frame
6
Parts Diagram
Parts Catalog
Headlight
by
Front fork II
Frame
1
2
3
4
4
5
5
5
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
1
Frame
GU01400160
£946,75 Unit Price incl. VAT
2
Front frame
GU01420290
Not Available
3
Guard decal
GU02931600
£2,39 Unit Price incl. VAT
4
screw
GU98680525
£4,92 Unit Price incl. VAT
5
Washer 10,5x16x1
GU19149800
£0,38 Unit Price incl. VAT
6
RH plate brown
GU01415780
£388,34 Unit Price incl. VAT
6
RH Plate red
GU01415790
Not Available
6
RH Plate grey
GU01415791
£380,72 Unit Price incl. VAT
7
Plate connection frame
GU01420160
£115,37 Unit Price incl. VAT
8
LH Plate grey
GU01415891
£161,52 Unit Price incl. VAT
8
LH plate brown
GU01415880
£380,72 Unit Price incl. VAT
8
LH Plate red
GU01415890
Not Available
9
Stud bolt
GU30419601
£40,84 Unit Price incl. VAT
10
Nut
GU92660113
£1,32 Unit Price incl. VAT
11
screw
GU98350540
£2,42 Unit Price incl. VAT
12
screw M10x40
GU98880540
£5,23 Unit Price incl. VAT
12
screw M10x30
GU98882530
£4,92 Unit Price incl. VAT
13
Nut
GU92630210
£1,49 Unit Price incl. VAT
14
screw
GU98082595
£4,48 Unit Price incl. VAT
15
Clip M6
GU28576591
£1,09 Unit Price incl. VAT
16
Screw w/ flange M6x12
GU98210612
£8,05 Unit Price incl. VAT
17
Protection
GU01575960
£19,19 Unit Price incl. VAT
18
screw
GU98682635
£2,17 Unit Price incl. VAT
19
Washer 13x18x1,7
GU30217900
£1,58 Unit Price incl. VAT
20
Nut
GU92640510
£2,33 Unit Price incl. VAT
21
Decal "Aquilia"
GU01517700
£35,30 Unit Price incl. VAT

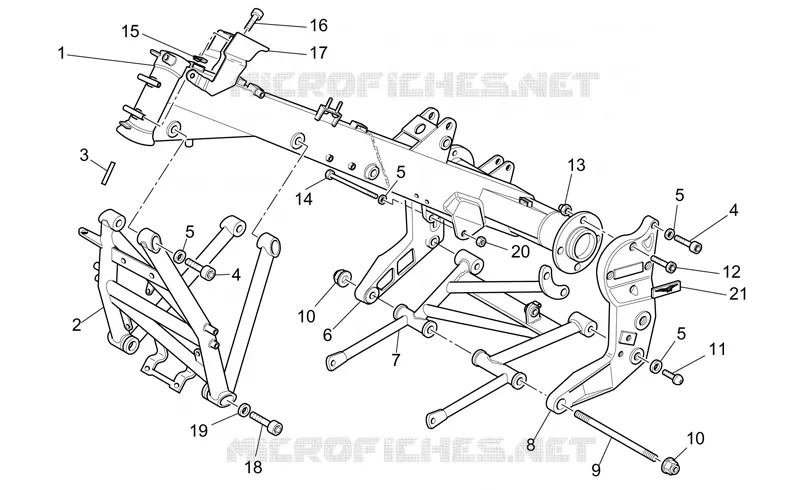

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
