Engine displacement
750
2
Model
TARGA
3
Year
1992
4
Trim
Targa
5
Parts Catalog
Gear box
6
Parts Diagram
Parts Catalog
Drive shaft
by
Carburettors
Gear box
1
2
3
3
3
4
4
5
6
7
8
9
9
10
11
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
35
36
36
36
37
37
37
38
39
39
40
41
42
43
44
45
46
46
47
47
48
49
50
50
51
52
53
54
55
56
57
58
59
60
61
62
63
1
Primary gear shaft Z=11
GU23210570
£836,15 Unit Price incl. VAT
2
Gear 5a AP Z=20
GU23212070
£391,15 Unit Price incl. VAT
3
Thrust washer
GU19215460
£1,15 Unit Price incl. VAT
4
Circlip
GU90271127
£0,83 Unit Price incl. VAT
5
Gear 4a AP Z=18
GU19211861
£54,23 Unit Price incl. VAT
6
Gear 3a AP Z=18
GU19211460
£386,02 Unit Price incl. VAT
7
Roller cage
GU92251023
£64,43 Unit Price incl. VAT
8
Gear 2a AP Z=14
GU19211361
£27,68 Unit Price incl. VAT
9
Washer
GU19218062
£1,21 Unit Price incl. VAT
10
Bearing AP 17x40x17,5
GU92218417
Not Available
11
Clearance washer
GU19214660
£1,87 Unit Price incl. VAT
12
Nut
GU10054100
£12,77 Unit Price incl. VAT
13
Bearing AP 20x37x17
GU92230320
£49,43 Unit Price incl. VAT
14
Driven shaft
GU19213661
£563,41 Unit Price incl. VAT
15
Spacer
GU19212900
£17,84 Unit Price incl. VAT
16
Bearing 20X47X14
GU92201220
£39,08 Unit Price incl. VAT
17
Spacer
GU19213720
£25,92 Unit Price incl. VAT
18
Gasket ring 18,77X1,78
GU90706188
£1,39 Unit Price incl. VAT
19
Circlip
GU90271121
£1,39 Unit Price incl. VAT
20
Gear 2a AS Z=23
GU23214571
£36,92 Unit Price incl. VAT
21
Gear 3a AS Z=23
GU19214860
£299,96 Unit Price incl. VAT
22
Gear 4a AS Z=19
GU19215161
£311,50 Unit Price incl. VAT
23
Gear 5a AS Z=18
GU23215270
£686,86 Unit Price incl. VAT
24
Driven gear 1A Z=26
GU23214070
Not Available
25
Washer
GU19218061
£0,96 Unit Price incl. VAT
26
Bearing
GU92234716
£185,69 Unit Price incl. VAT
27
Spacer 2,1 mm
GU10214305
£8,12 Unit Price incl. VAT
27
Washer 2 mm
GU10214304
£10,00 Unit Price incl. VAT
27
Spacer 1,9 mm
GU10214303
£8,12 Unit Price incl. VAT
27
Spacer 1,7 mm
GU10214301
£8,12 Unit Price incl. VAT
27
Spacer 1,8 mm
GU10214302
£8,12 Unit Price incl. VAT
28
Gutter
GU23202074
£2,20 Unit Price incl. VAT
29
Circlip
GU90271117
£0,96 Unit Price incl. VAT
30
Shift cam
GU19234420
£72,68 Unit Price incl. VAT
31
Pin
GU19234600
£10,20 Unit Price incl. VAT
32
Spacer 1 mm
GU19355300
£13,21 Unit Price incl. VAT
33
Snap ring
GU90271020
£0,85 Unit Price incl. VAT
34
Fork AP
GU19231220
Not Available
35
Fork AS
GU19231020
£370,06 Unit Price incl. VAT
36
Roller
GU92297909
£2,29 Unit Price incl. VAT
37
Pin
GU95520316
£1,62 Unit Price incl. VAT
38
Pre-selector kit
GU20999520
Not Available
39
Spring
GU61238200
Not Available
39
Spring
GU28238261
Not Available
40
Spacer
GU20208520
£10,73 Unit Price incl. VAT
41
Idle gear
GU27211160
Not Available
42
Nut
GU10054100
£12,77 Unit Price incl. VAT
43
Clearance washer
GU39238100
£1,58 Unit Price incl. VAT
44
O-ring
GU90706040
Not Available
45
Shift lever
GU19258220
Not Available
46
screw
GU98052325
£0,56 Unit Price incl. VAT
47
Notched washer
GU95021106
Not Available
48
Tie rod
GU18257950
£13,28 Unit Price incl. VAT
49
Fork
GU12626800
£74,86 Unit Price incl. VAT
50
Nut
GU92602206
£1,68 Unit Price incl. VAT
51
Washer
GU95129110
Not Available
52
Ball joint
GU18258101
Not Available
53
Split pin
GU95500222
£1,26 Unit Price incl. VAT
54
Pin
GU95770265
Not Available
55
Lever
GU19256920
Not Available
56
Special washer
GU61013800
£1,26 Unit Price incl. VAT
57
Nut M6x1
GU92630106
£5,03 Unit Price incl. VAT
58
Complete gearchange lever
GU19250900
Not Available
59
Rubber spacer
GU14251001
£3,65 Unit Price incl. VAT
60
Spring washer
GU95129260
£2,59 Unit Price incl. VAT
61
Change gear tie rod compl.
GU19257701
Not Available
62
Preselection complete
GU20236220
£103,04 Unit Price incl. VAT
63
Bushing
GU91182010
£9,62 Unit Price incl. VAT

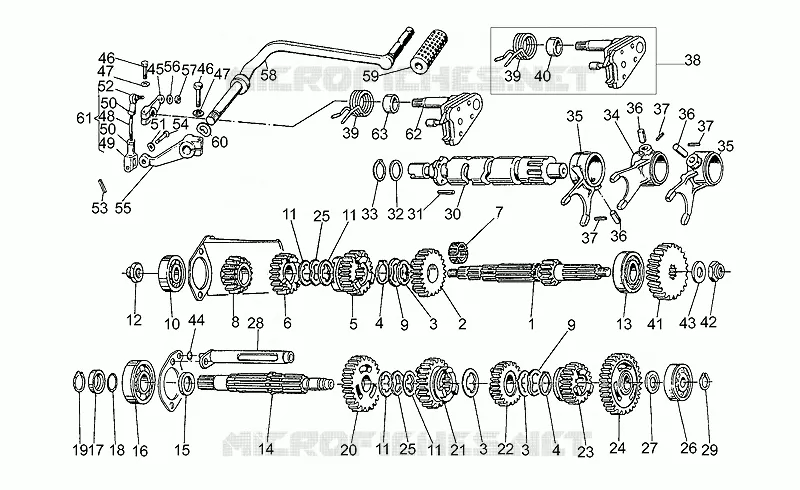

Find the detailed Gear box MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
