1
Engine displacement
750
2
Model
TARGA
3
Year
1992
4
Trim
Targa
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Carburettors
by
Timing system
Crankcase
1
2
2
3
4
5
5
5
5
6
7
8
9
9
10
11
13
14
15
16
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
Crankcase, grey
GU20000320
Not Available
2
Stud bolt
GU96451560
£11,22 Unit Price incl. VAT
3
Stud bolt
GU96451430
£5,36 Unit Price incl. VAT
4
Stud bolt
GU96508055
£9,60 Unit Price incl. VAT
5
Bushing
GU19015020
£10,75 Unit Price incl. VAT
6
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
7
Nut
GU92602208
Not Available
8
Joint
GU19003800
£22,21 Unit Price incl. VAT
9
Bushing 6,6x9x13
GU19002020
£8,24 Unit Price incl. VAT
10
Cover
GU19016320
£10,19 Unit Price incl. VAT
11
Gasket ring
GU90401530
£7,26 Unit Price incl. VAT
13
Gasket ring
GU90405367
£35,53 Unit Price incl. VAT
14
Cover grey
GU31001480
Not Available
15
Gasket
GU19001200
£4,96 Unit Price incl. VAT
16
screw
GU98620325
Not Available
17
Cover
GU19017120
Not Available
18
Gasket ring 28x38x7
GU90402840
£15,29 Unit Price incl. VAT
19
Engine oil sump, blank
GU27003585
Not Available
20
Gasket
GU19003602
Not Available
21
Oil unload plug M10x1
GU31003766
£15,77 Unit Price incl. VAT
22
Gasket
GU10528900
£4,45 Unit Price incl. VAT
23
Hex socket screw
GU98622318
£0,61 Unit Price incl. VAT
24
Cover
GU27001636
Not Available
25
Flange
GU27001136
£13,16 Unit Price incl. VAT
26
Cover, blank
GU19003400
Not Available
27
O-ring
GU90706444
£1,39 Unit Price incl. VAT
28
Oil load plug
GU27004985
Not Available
29
Gasket ring
GU90706282
£0,65 Unit Price incl. VAT
30
Oil plug
GU19351200
Not Available
31
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
32
Bolt
GU27152885
£10,73 Unit Price incl. VAT
33
Gasket 8,25x15x1
GU12154200
£2,45 Unit Price incl. VAT
34
Oil seals - set
GU19999580
Not Available
35
Gasket set
GU27999060
Not Available
36
Column nut
GU13021900
£15,36 Unit Price incl. VAT
37
screw
GU98620330
£0,49 Unit Price incl. VAT
38
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
39
Cover
GU95980119
Not Available
40
Gasket
GU10154200
£5,08 Unit Price incl. VAT
41
Engine w/o gearbox
GU31991015
Not Available

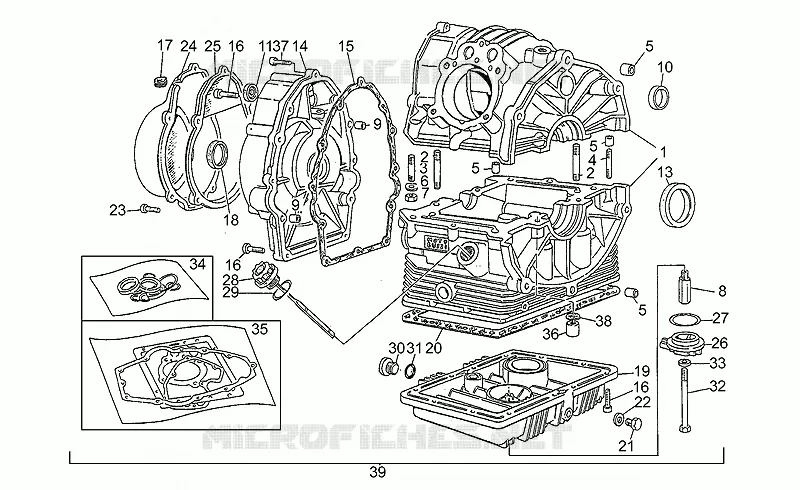

Find the detailed Crankcase MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
