Headlight/Horn for Stelvio 8V STD - NTX from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Headlight/Horn

1

Front headlight assy

887029

£341,81 Unit Price incl. VAT

1

Front headlight assy

887820

£448,27 Unit Price incl. VAT

2

Lamp H4 12V-60/55W

292723

£18,91 Unit Price incl. VAT

3

Lamp 12V-5W

292022

Not Available

4

Hex socket screw M5x25

GU98680225

£5,28 Unit Price incl. VAT

5

T bush

AP8221023

£1,64 Unit Price incl. VAT

6

Rubber spacer

AP8120030

£1,38 Unit Price incl. VAT

7

Spring plate M5

248419

£2,00 Unit Price incl. VAT

8

RH front turn indicator

978428

£39,64 Unit Price incl. VAT

9

Lamp 12V-10W

584332

£3,77 Unit Price incl. VAT

10

LH front turn indicator

978427

£39,64 Unit Price incl. VAT

11

screw

GU98682116

£2,14 Unit Price incl. VAT

12

Horn

886325

Not Available

13

Screw w/ flange M6x20

AP8152279

£1,87 Unit Price incl. VAT

14

Self-locking nut M6

AP8152299

£1,88 Unit Price incl. VAT

15

Spring washer 5,3X10X0,5

GU95129100

£0,58 Unit Price incl. VAT

16

Bush

GU91120507

£10,75 Unit Price incl. VAT

17

Washer 5,3x10x0,8

GU95008205

£1,26 Unit Price incl. VAT

18

Clip M4

AP8102381

£4,02 Unit Price incl. VAT

19

screw M4x25

GU98680125

£4,98 Unit Price incl. VAT

20

Headlight wiring w/harness

899522

£78,91 Unit Price incl. VAT

21

Dimmer for headlight

887821

£10,13 Unit Price incl. VAT

22

Bulb socket

2R000006

£2,28 Unit Price incl. VAT

23

Front headlight guard

2R000007

£8,18 Unit Price incl. VAT

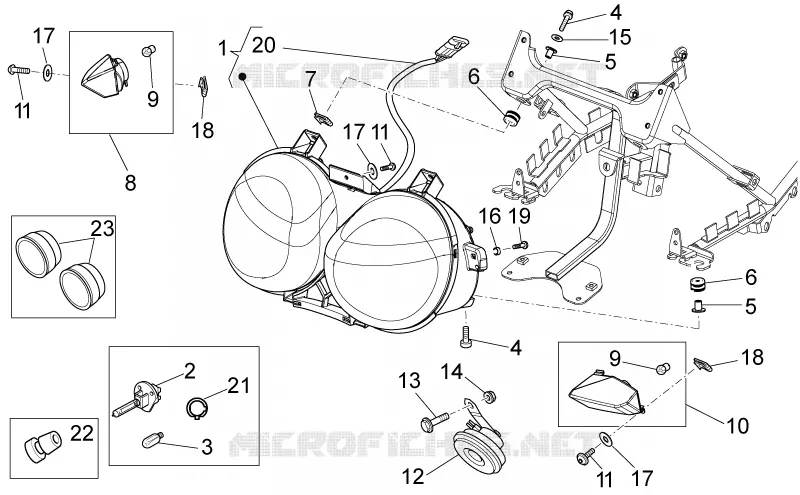

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
