Engine displacement
1200
2
Model
STELVIO
3
Year
2017
4
Trim
Stelvio 8V STD - NTX
5
Parts Catalog
Front body - Duct
6
Parts Diagram
Parts Catalog
ABS Brake system 2010
by
Rear brake caliper
Front body - Duct
1
2
3
4
5
6
7
7
7
8
9
10
10
11
11
11
11
12
12
13
14
15
15
16
17
18
18
19
19
1
RH side panel, navy blue
89763700DE
£132,37 Unit Price incl. VAT
1
RH side panel
89763700BM
£132,37 Unit Price incl. VAT
1
RH side panel
89763700YA2
£127,04 Unit Price incl. VAT
1
RH side panel, blank
897637
£107,08 Unit Price incl. VAT
1
RH side panel, black Guzzi
89763700Y02
£82,38 Unit Price incl. VAT
1
RH side panel, black
89763700NI
£132,37 Unit Price incl. VAT
1
RH side panel technogrey
89763700Y11
£132,37 Unit Price incl. VAT
2
LH side panel, black
89763800NI
£132,37 Unit Price incl. VAT
2
LH side panel, blank
897638
£132,37 Unit Price incl. VAT
2
LH side panel
89763800YA2
Not Available
2
LH side panel
89763800BM
£132,37 Unit Price incl. VAT
2
LH side panel technogrey
89763800Y11
£132,37 Unit Price incl. VAT
2
LH side panel, navy blue
89763800DE
£151,12 Unit Price incl. VAT
2
LH side panel, black Guzzi
89763800Y02
£82,38 Unit Price incl. VAT
3
Left grille frame
886821
£111,24 Unit Price incl. VAT
4
Right grille frame
886822
£111,24 Unit Price incl. VAT
5
Left duct grille
886823
£11,92 Unit Price incl. VAT
6
Right duct grille
886824
£11,92 Unit Price incl. VAT
7
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
8
Unfinished right duct
897639
£24,72 Unit Price incl. VAT
8
RH air duct technogrey
89763900Y11
£219,78 Unit Price incl. VAT
8
RH air duct, black
89763900NI
£185,11 Unit Price incl. VAT
9
Unfinished left duct
897640
£22,36 Unit Price incl. VAT
9
LH air duct, black
89764000NI
£232,98 Unit Price incl. VAT
9
LH air duct technogrey
89764000Y11
Not Available
10
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
11
Spring plate M5
248419
£2,00 Unit Price incl. VAT
12
Clip M4
AP8102381
£4,02 Unit Price incl. VAT
13
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
14
Rubber spacer
AP8144065
£2,44 Unit Price incl. VAT
15
Screw w/ flange M5x12
AP8152302
Not Available
16
Grey right cap
88346700Y11
£60,36 Unit Price incl. VAT
16
Black right cap
88346700NI
£60,36 Unit Price incl. VAT
17
Grey left cap
88346800Y11
£60,36 Unit Price incl. VAT
17
Black left cap
88346800NI
£60,36 Unit Price incl. VAT
18
Hex socket screw M4x12
GU98370412
£1,26 Unit Price incl. VAT
19
Clip M4
AP8102381
£4,02 Unit Price incl. VAT

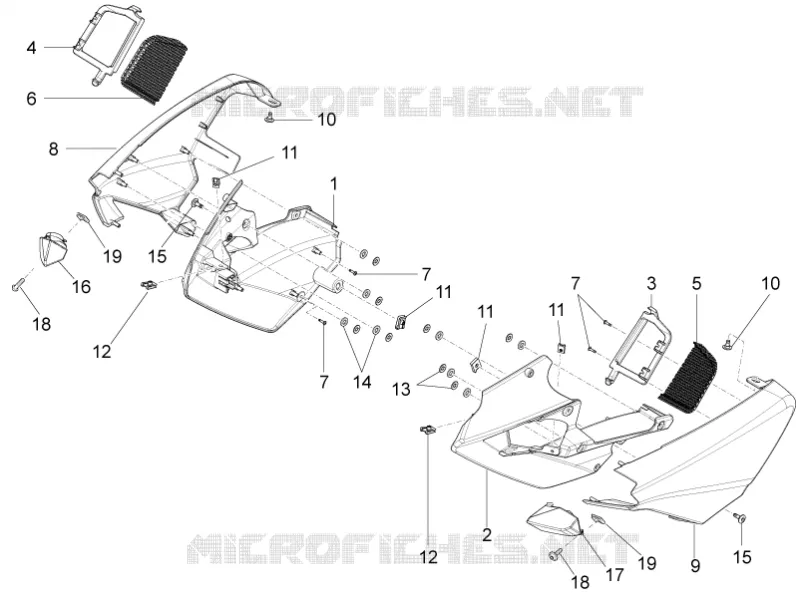

Find the detailed :label MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
