Parts Catalog
Carburettors
6
Parts Diagram
Parts Catalog
Gear box
by
Carburettors 1991-D
Carburettors
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
37
39
40
41
42
42
43
44
45
46
47
48
49
50
51
52
55
56
57
58
59
60
61
62
63
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
1
Gas valve 60,5
GU28937560
Not Available
2
Conical pin K19-3A tacca
GU28937760
£15,00 Unit Price incl. VAT
3
Needle valve 266 AB
GU28935590
Not Available
4
Main jet 145
GU28935760
Not Available
5
Idle jet 57
GU28935960
Not Available
6
Starter jet 60
GU19936000
£9,53 Unit Price incl. VAT
7
Pump jet 35
GU28939060
Not Available
8
Needle valve 300
GU14939150
Not Available
9
Float
GU14933000
Not Available
10
Tyre
0000000
Not Available
11
Washer
GU13932900
Not Available
12
Tyre
0000000
Not Available
13
Throttle lever
GU14933550
Not Available
14
Tyre
0000000
Not Available
15
Tyre
0000000
Not Available
16
Spring
GU14938050
Not Available
17
Lever
GU14938150
Not Available
18
screw
GU14933450
Not Available
19
Spring washer
GU14933650
Not Available
20
Plug
GU14933150
Not Available
21
Tyre
0000000
Not Available
22
VIS
GU14934650
£1,79 Unit Price incl. VAT
23
Tyre
0000000
Not Available
24
Tyre
0000000
Not Available
25
Cover
GU14935450
Not Available
26
Tyre
0000000
Not Available
27
Tyre
0000000
Not Available
28
Tyre
0000000
Not Available
29
Tyre
0000000
Not Available
30
Tyre
0000000
Not Available
31
Tyre
0000000
Not Available
32
Tyre
0000000
Not Available
33
Tyre
0000000
Not Available
34
Tyre
0000000
Not Available
35
Tyre
0000000
Not Available
36
Tyre
0000000
Not Available
37
Tyre
0000000
Not Available
38
Tyre
0000000
Not Available
39
Tyre
0000000
Not Available
40
Spring washer
GU14934850
Not Available
41
screw
GU14934950
Not Available
42
Tyre
0000000
Not Available
43
Flat washer
GU14931650
Not Available
44
Spring
GU13936700
Not Available
45
Gas valve adjuster screw
GU13936600
Not Available
46
Tyre
0000000
Not Available
47
Flat washer
GU65933700
Not Available
48
RESSORT
GU13936300
£1,14 Unit Price incl. VAT
49
Adj.min.eng.speed screw
GU13936200
Not Available
50
Tyre
0000000
Not Available
51
Vis tendeur de fil
GU12937200
£5,36 Unit Price incl. VAT
52
Nut
GU12937300
Not Available
55
Tyre
0000000
Not Available
56
Valve spring
GU39937600
Not Available
57
Starter valve
GU13937800
£12,94 Unit Price incl. VAT
58
Tyre
0000000
Not Available
59
Tyre
0000000
Not Available
60
Tyre
0000000
Not Available
61
Tyre
0000000
Not Available
62
Tyre
0000000
Not Available
63
Tyre
0000000
Not Available
64
Tyre
0000000
Not Available
65
Tyre
0000000
Not Available
66
screw
GU14936550
Not Available
67
Nut
GU14936450
Not Available
68
Tyre
0000000
Not Available
69
Pump cover
GU14936850
£114,90 Unit Price incl. VAT
70
Ressort
GU14936950
£16,73 Unit Price incl. VAT
71
Diaphragm
GU14931050
Not Available
72
Tyre
0000000
Not Available
73
Intake valve
GU14931350
Not Available
74
Tyre
0000000
Not Available
75
Fuel filter
GU43934000
£2,52 Unit Price incl. VAT
76
Tyre
0000000
Not Available
77
Cap fixing screw
GU10934900
Not Available
78
Tyre
0000000
Not Available
79
Tyre
0000000
Not Available
80
Float pin
GU13933100
£17,57 Unit Price incl. VAT
81
Tyre
0000000
Not Available
82
Tyre
0000000
Not Available
83
Tyre
0000000
Not Available
84
Tyre
0000000
Not Available
85
Tyre
0000000
Not Available
86
Tyre
0000000
Not Available
87
Tyre
0000000
Not Available
88
Tyre
0000000
Not Available
89
Gaskets set
GU28939960
Not Available

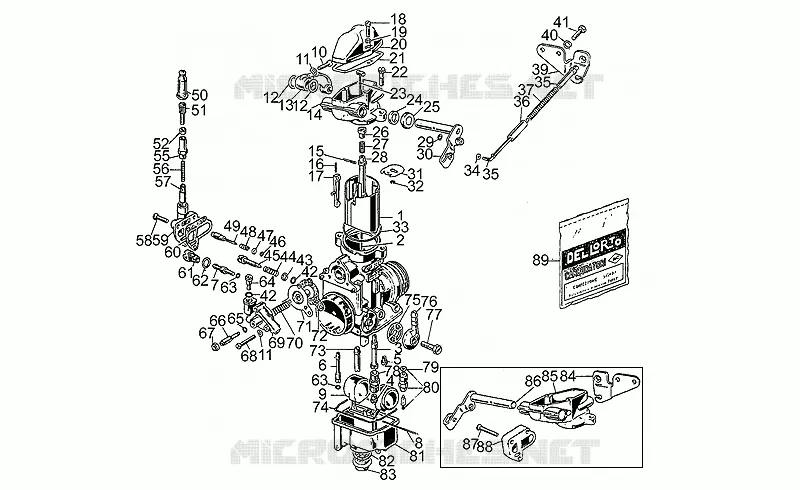

Find the detailed Carburettors MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
