Parts Catalog
Crankshaft 1991-D
6
Parts Diagram
Parts Catalog
Drive shaft
by
Primary gear shaft 1991-D
Crankshaft 1991-D
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
Drive shaft
GU18064204
Not Available
2
Bouchon
GU12065400
£24,20 Unit Price incl. VAT
3
Clavette
GU91702355
£32,86 Unit Price incl. VAT
4
Pinion
GU14072001
£34,61 Unit Price incl. VAT
5
Rondelle de séreté
GU95028025
£10,73 Unit Price incl. VAT
6
Bague
GU93601026
£32,50 Unit Price incl. VAT
7
Flywheel
GU17067050
Not Available
8
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
9
screw
GU12067701
£0,72 Unit Price incl. VAT
10
Couronne
GU17067900
£184,60 Unit Price incl. VAT
11
Rondelle 8,4X13X0,8
GU14615901
£2,48 Unit Price incl. VAT
12
Hex screw
GU98054420
£0,49 Unit Price incl. VAT
13
Connecting rod
GU30061500
£126,91 Unit Price incl. VAT
14
Bague
GU91112128
£67,02 Unit Price incl. VAT
15
Ecrou autobloqu.
GU92731090
£10,73 Unit Price incl. VAT
16
screw
GU30062260
Not Available
17
Demi-coussinet 0,508 mm
GU30062002
£138,44 Unit Price incl. VAT
17
Bearing half-shell 0,762 mm
GU30062003
£36,77 Unit Price incl. VAT
17
Bearing half-shell
GU30062000
Not Available
17
Bearing half-shell 0,254 mm
GU30062001
Not Available
18
Piston
GU30060410
Not Available
19
Segment d'étanchéité
GU14060760
£71,33 Unit Price incl. VAT
20
Segment d'étanchéité
GU18060950
£45,24 Unit Price incl. VAT
21
SEGMENT RACLEUR
GU14061060
£71,33 Unit Price incl. VAT
22
Piston pin
GU28061260
Not Available
23
Bague de butée
GU27061385
£9,61 Unit Price incl. VAT
25
Piston rings set
GU18060601
Not Available
26
Culbuteur tige
GU37045006
£146,72 Unit Price incl. VAT
27
Tappet 0,05 mm
GU10045801
Not Available
27
Tappet 0,10 mm
GU10045802
Not Available
27
Poussoir
GU17045860
£180,11 Unit Price incl. VAT
28
Camshaft
GU14053301
Not Available
29
Flange
GU12054000
Not Available
30
Vis M6X20
GU98054320
£0,96 Unit Price incl. VAT
31
Rondelle 6,5x11x2
GU95120065
£1,02 Unit Price incl. VAT
32
Timing system gear
GU13054502
Not Available
33
Goupille
GU14234600
£12,38 Unit Price incl. VAT
34
Rondelle élastique
GU14433400
£1,02 Unit Price incl. VAT
35
Nut M18X1,5
GU92602518
Not Available
36
Chain
GU28058060
£47,76 Unit Price incl. VAT
37
Chain tensioner
GU30057810
Not Available
38
Rondelle élastique
GU61270300
£1,70 Unit Price incl. VAT
39
Vis M8X35
GU98052435
£2,04 Unit Price incl. VAT

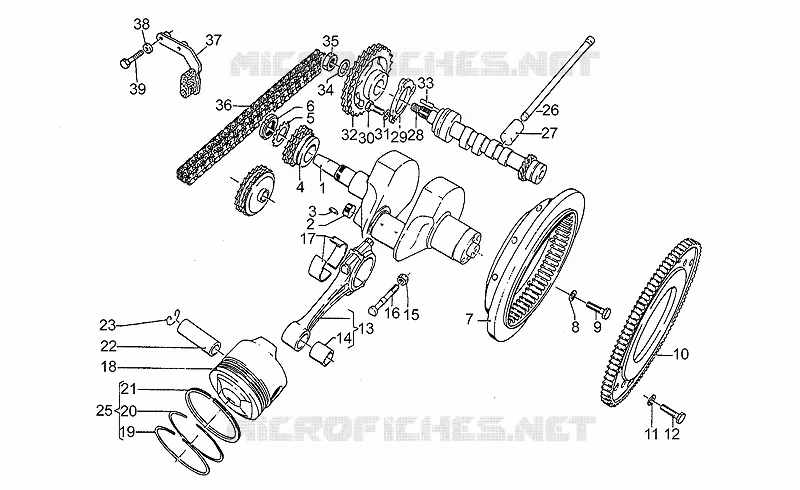

Find the detailed Crankshaft 1991-D MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
