Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Front wheel
by
Front/rear shock absorber
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Rear wheel
GU27630611
Not Available
1
Rear wheel
GU27630610
Not Available
2
Brake disc
GU27613310
Not Available
3
screw
GU98230825
£7,98 Unit Price incl. VAT
4
RH rubber coupling
GU19632501
£15,76 Unit Price incl. VAT
5
LH rubber coupling
GU19632502
£13,22 Unit Price incl. VAT
6
Bearing
GU92204218
£73,26 Unit Price incl. VAT
7
Bearing
GU92204217
£60,25 Unit Price incl. VAT
8
Spacer
GU27633910
£52,58 Unit Price incl. VAT
9
Spacer
GU27356910
£9,01 Unit Price incl. VAT
10
Rear wheel spindle
GU27633310
Not Available
10
Rear wheel spindle
GU31633330
Not Available
11
Washer
GU14634400
Not Available
12
Nut M6x1,5
GU92602316
£1,45 Unit Price incl. VAT
13
Rear wheel spoke, long
GU27631410
Not Available
14
Rear wheel spoke, short
GU27631110
Not Available
15
Nipples
GU27611710
Not Available
16
Counterweight 15 gr.
GU27616111
£1,58 Unit Price incl. VAT
16
Counterweight 30 g
GU27616113
£11,29 Unit Price incl. VAT
16
Counterweight 10 gr.
GU27616110
£11,29 Unit Price incl. VAT
16
Counterweight 20 g
GU27616112
£11,29 Unit Price incl. VAT
17
Inner tube fastener
GU27619110
Not Available

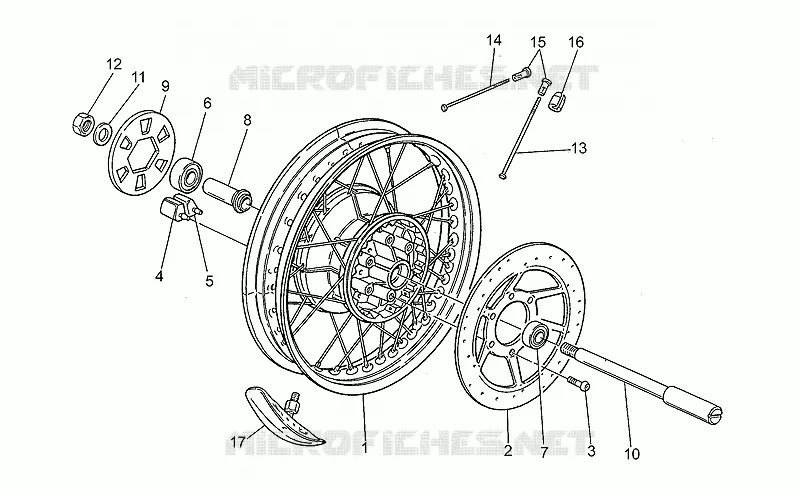

Find the detailed Rear wheel MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
