Engine displacement
650
2
Model
NTX
3
Year
1988
4
Trim
NTX
5
Parts Catalog
Cylinder head
6
Parts Diagram
Parts Catalog
Crankcase
by
Timing system
Cylinder head
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
RH cylinder head
GU23022170
Not Available
2
LH cylinder head
GU23022270
Not Available
3
Valve guide
GU61036801
£44,20 Unit Price incl. VAT
4
Snap ring
GU90353009
£1,02 Unit Price incl. VAT
5
Stud bolt
GU96506042
£10,42 Unit Price incl. VAT
6
Anti-vibration plate
GU19025300
£3,41 Unit Price incl. VAT
7
Nut
GU23021910
Not Available
8
Oil seal
GU19037820
£24,59 Unit Price incl. VAT
9
Valves cover
GU27023515
Not Available
10
Gasket
GU19023700
£1,57 Unit Price incl. VAT
11
Column nut
GU92660010
Not Available
12
Nut
GU31021900
Not Available
13
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
14
Tie rod
GU96510200
Not Available
15
Tie rod 143 mm
GU96510143
Not Available
16
screw
GU98610325
Not Available
17
Cylinder with piston
GU23060170
Not Available
18
Bushing
GU19021360
£19,37 Unit Price incl. VAT
19
Gasket
GU27022060
£40,02 Unit Price incl. VAT
20
Tie rod
GU96508125
Not Available
21
Spring washer 8x15x0,3
GU61270300
£1,70 Unit Price incl. VAT
22
Cover
GU93180245
£2,63 Unit Price incl. VAT
23
O-ring
GU61027200
£1,58 Unit Price incl. VAT
24
Gasket
GU27020820
Not Available
25
O-ring
GU90706076
£0,89 Unit Price incl. VAT

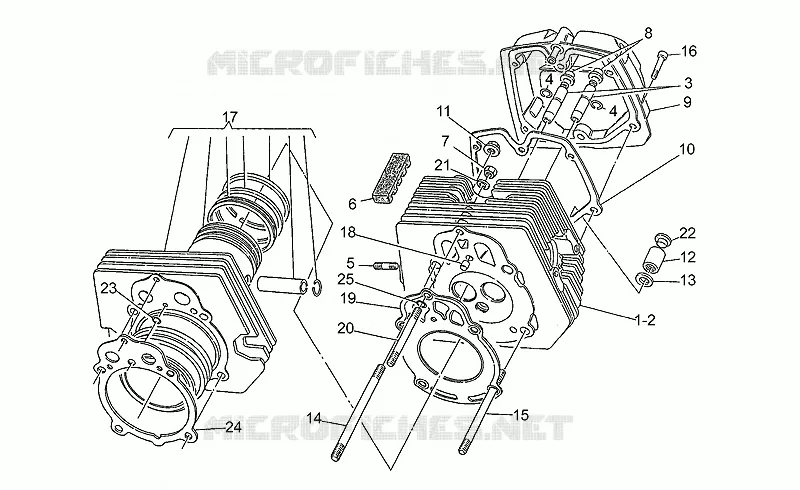

Find the detailed Cylinder head MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
