Parts Catalog
Cylinder head and valves
6
Parts Diagram
Parts Catalog
Transmission complete
by
Pillar
Cylinder head and valves
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
1
RH head assy w/h valve grey
976079
£875,21 Unit Price incl. VAT
2
LH head assy without valve grey
976080
£875,21 Unit Price incl. VAT
3
Valve stem seal D8
976107
£11,83 Unit Price incl. VAT
4
RH.Rocker arm support
976152
£92,29 Unit Price incl. VAT
5
Exhaust valve
GU05036131
Not Available
6
Intake valve
GU05036030
£56,69 Unit Price incl. VAT
7
Snap ring
GU90353016
£1,02 Unit Price incl. VAT
8
O-ring 8,73x1,78-viton
224202
£1,01 Unit Price incl. VAT
9
Pin 11,8X10
825597
£2,35 Unit Price incl. VAT
10
Lower cup 14,2x32x5
GU01037030
£23,16 Unit Price incl. VAT
10
Lower cup 14,2x32x7
976181
£17,99 Unit Price incl. VAT
11
Outer spring
GU37037405
£17,94 Unit Price incl. VAT
12
Inner spring
GU37037605
£17,58 Unit Price incl. VAT
13
Upper cup
GU01038060
£33,85 Unit Price incl. VAT
14
Valve half-cone
GU01038160
£5,94 Unit Price incl. VAT
15
Oil plug
GU12022600
£36,13 Unit Price incl. VAT
16
O-ring 20,24X2,62
GU90706203
£1,39 Unit Price incl. VAT
17
Rubber spacer
GU05025331
£15,40 Unit Price incl. VAT
18
Bushing 6,8x8,8x9,8
GU32116810
£5,24 Unit Price incl. VAT
19
Stud bolt
GU96508040
£12,31 Unit Price incl. VAT
20
Gasket
976052
£61,30 Unit Price incl. VAT
21
Screw w/ flange M5x16
AP8152298
£3,48 Unit Price incl. VAT
22
LH.Rocker arm support
976153
£95,76 Unit Price incl. VAT
23
Nut M10X1,5
GU92603010
£1,54 Unit Price incl. VAT
24
Washer 10,5X21X1
GU14018400
£1,26 Unit Price incl. VAT
25
RH rocker arm assy
GU14030201
£173,05 Unit Price incl. VAT
26
LH rocker arm assy
GU14030401
£173,05 Unit Price incl. VAT
27
Bushing 15x18x43
GU91111511
£53,51 Unit Price incl. VAT
28
Adjuster screw
GU17034050
£15,18 Unit Price incl. VAT
29
Nut
GU10034100
£13,40 Unit Price incl. VAT
30
Spring
GU94322215
£10,33 Unit Price incl. VAT
31
Washer 15,2x26x1
GU90118152
£12,17 Unit Price incl. VAT
32
Washer 15,2x26x0,5
GU10032700
£1,25 Unit Price incl. VAT
33
Rocker shaft
GU12031800
Not Available
34
Hex screw
GU98084316
£1,20 Unit Price incl. VAT
35
Washer 6,5x11x2
GU95120065
£1,02 Unit Price incl. VAT
36
RH/LH head cover grey
976095
Not Available
37
Insert
GU05023430
£37,38 Unit Price incl. VAT
38
Cover gasket
976139
£10,69 Unit Price incl. VAT
39
screw M6x25
GU05025930
£13,94 Unit Price incl. VAT
40
Washer 10,5X18X0,8
GU95129180
£1,02 Unit Price incl. VAT
41
screw
976144
£27,97 Unit Price incl. VAT
42
Washer 14,2x31x1
GU13037200
£2,75 Unit Price incl. VAT
43
Washer 14,2x31x0,3
GU14037300
£2,26 Unit Price incl. VAT
44
Breather union on head
GU32023910
£19,10 Unit Price incl. VAT
45
Cover
976068
£11,00 Unit Price incl. VAT
46
Washer
969973
Not Available

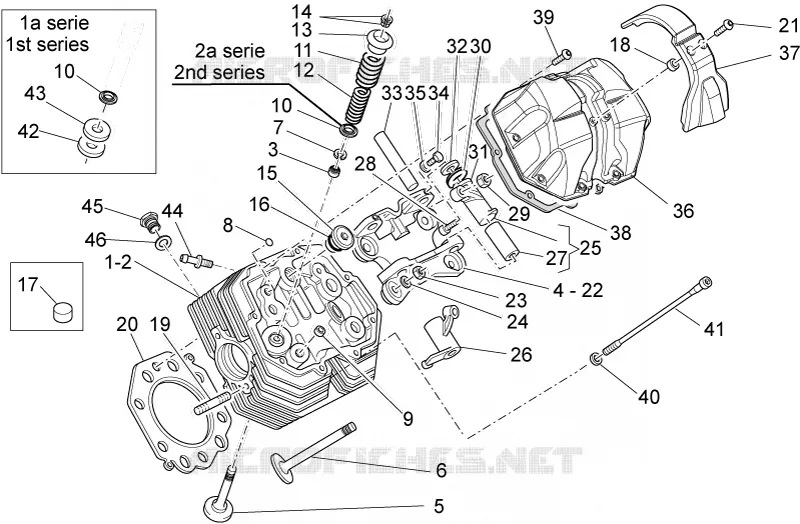

Find the detailed Cylinder head and valves MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
