Engine displacement
1200
2
Model
NORGE
3
Year
2008
4
Trim
Norge IE
5
Parts Catalog
Fuel vapour recover system
6
Parts Diagram
Parts Catalog
Air box
by
GPS Navigator TomTom Rider
Fuel vapour recover system
1
2
3
4
4
4
4
5
5
5
5
5
5
5
6
6
6
6
6
7
8
8
8
9
9
10
10
11
12
12
13
13
14
15
16
17
18
1
Carbon filter
AP8102678
£41,63 Unit Price incl. VAT
2
Canister support plate
AP8134884
£13,63 Unit Price incl. VAT
3
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
4
Hose clamp D11,3
AP8102378
£4,01 Unit Price incl. VAT
4
Hose clip 12,5x8
GU28157950
£2,64 Unit Price incl. VAT
5
Hose clip 11,5x6
GU29108550
Not Available
5
Hose clamp D9,1*
AP8102377
£2,45 Unit Price incl. VAT
6
Fuel pipe 5,5x10
AP8120952
Not Available
6
pipe SAE 30 d.12,7x6,35
856063
£63,43 Unit Price incl. VAT
7
Pressure valve
AP8104614
£63,66 Unit Price incl. VAT
8
pipe SAE 30 d.11,11x4,8
856062
Not Available
8
Breather pipe 4x8
AP8220263
Not Available
9
3-way union
AP8144303
£16,02 Unit Price incl. VAT
9
3-way union
AP8104666
£16,02 Unit Price incl. VAT
10
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
11
Joint
GU06704700
£4,68 Unit Price incl. VAT
11
2-way union
AP8101944
£5,48 Unit Price incl. VAT
12
Insert
2B001203
£7,32 Unit Price incl. VAT
13
O-ring 2018
AP8120965
£1,06 Unit Price incl. VAT
14
O-ring 6x1
GU90706009
£2,48 Unit Price incl. VAT
15
Joint
GU95963062
£28,25 Unit Price incl. VAT
16
Bored screw
GU95990023
£19,60 Unit Price incl. VAT
17
Hose clamp D11,3
AP8102378
£4,01 Unit Price incl. VAT
18
Brake hose hanger
AP8134167
£18,38 Unit Price incl. VAT

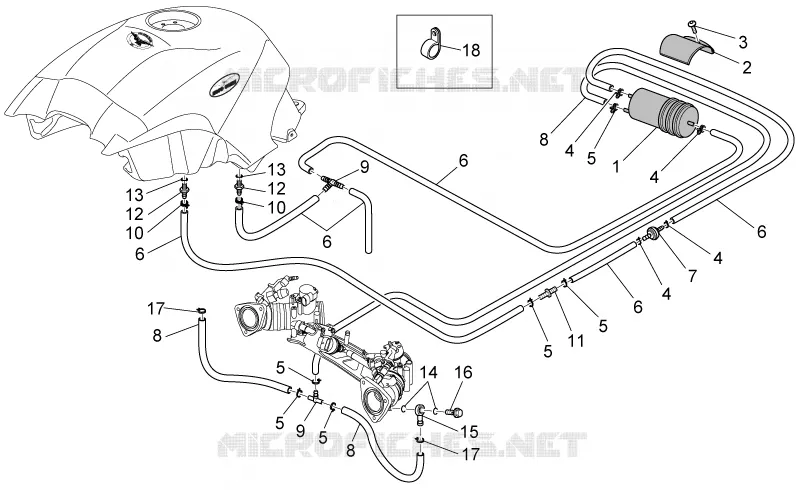

Find the detailed Fuel vapour recover system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
