Front brake system for MOTO GUZZI LAVERDA SCARABEO Nevada Base - Club from 2003

Free shipping for all orders to United Kingdom over £150! See conditions.

Front brake system

1

Front master cilinder

GU30660180

Not Available

2

Levier frein

GU30605680

£69,13 Unit Price incl. VAT

3

Bracket

GU27664075

Not Available

4

Capuchon

GU39663801

£10,33 Unit Price incl. VAT

5

Pivot

GU27604815

£19,98 Unit Price incl. VAT

6

Guide-câble

GU31655783

£19,31 Unit Price incl. VAT

7

Minirupteur

GU30749860

£30,79 Unit Price incl. VAT

8

screw

GU98200214

Not Available

9

Ball

GU92295708

£0,70 Unit Price incl. VAT

10

Pump cover

GU27661115

Not Available

11

Oil pipe screw *

GU95990028

£14,99 Unit Price incl. VAT

12

Garniture

GU25656100

£1,57 Unit Price incl. VAT

13

Tuyau flexible

GU31657183

£101,83 Unit Price incl. VAT

14

Ecrou

GU92601002

£1,02 Unit Price incl. VAT

15

Cap

GU27663615

Not Available

16

LH Front brake caliper, gold

GU01652230

£542,16 Unit Price incl. VAT

17

screw M10x30

GU98683530

Not Available

18

Washer 10,5x16x1

GU19149800

£0,38 Unit Price incl. VAT

19

Rondelle d'appui 0,5 mm

GU95100332

£1,42 Unit Price incl. VAT

19

Clearance washer 0,8 mm

GU95100333

£0,52 Unit Price incl. VAT

20

Plaquettes-paire

GU01654630

£52,94 Unit Price incl. VAT

21

Purge+capuchon

GU01659230

£22,54 Unit Price incl. VAT

22

Pivots+ressorts pince

GU01659130

£44,40 Unit Price incl. VAT

23

Ressort

GU01659131

£46,15 Unit Price incl. VAT

24

Vis M6x10

GU98370609

£2,04 Unit Price incl. VAT

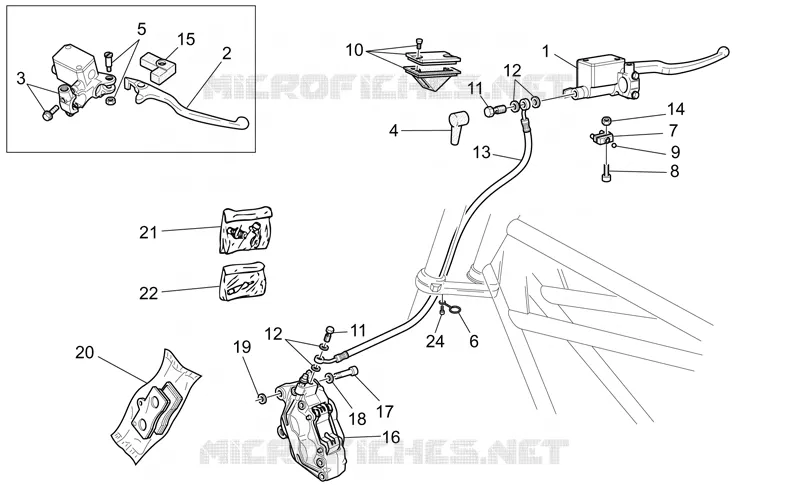

Find the detailed Front brake system MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
