Engine displacement
750
2
Model
NEVADA
3
Year
2003
4
Trim
Nevada Base - Club
5
Parts Catalog
Front fork
6
Parts Diagram
Parts Catalog
F.fork-R.shock absorber
by
Front wheel I
Front fork
1
1
2
2
3
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
34
1
screw M10x30
GU03530530
Not Available
2
Washer
GU03530529
Not Available
3
Vis M6X35
GU98620335
£1,14 Unit Price incl. VAT
4
Fourreau G
GU31490783
£1 164,38 Unit Price incl. VAT
5
Upper bush
GU30526761
Not Available
6
Washer
GU01530568
£5,23 Unit Price incl. VAT
7
Gasket ring 40x52x9,5
GU27530584
£10,33 Unit Price incl. VAT
8
Stop ring
GU31530582
Not Available
9
Dust cover
GU01530571
Not Available
10
Tige
GU31525483
£630,16 Unit Price incl. VAT
11
Lower bush
GU30525861
Not Available
12
Pad
GU03530551
Not Available
13
Return spring
GU03530553
Not Available
14
Tige
GU31530583
£75,71 Unit Price incl. VAT
15
Spring
GU31530581
Not Available
16
Tuyau precharge
GU31530584
£20,06 Unit Price incl. VAT
17
Plug cpl.
GU31504583
£25,78 Unit Price incl. VAT
18
screw
GU31530580
Not Available
19
Base avec tube
GU31494183
£175,37 Unit Price incl. VAT
20
Ring nut M25X1
GU31513480
Not Available
21
Plaque sup. fourche
GU31493183
£149,99 Unit Price incl. VAT
22
Washer
GU27530510
Not Available
23
Nut M20x1,5
GU30512830
Not Available
24
Caoutchouc
AP8144222
£7,21 Unit Price incl. VAT
24
Rubber spacer
GU27530503
Not Available
25
Entretoise
GU91181039
£10,73 Unit Price incl. VAT
25
Spacer
GU03530503
Not Available
26
Cup
GU27530505
Not Available
27
Nut
GU27530506
Not Available
28
Ring
GU31530579
Not Available
29
Fourreau D
GU31490683
£178,82 Unit Price incl. VAT
30
Cavalier inf.
GU31501283
£25,38 Unit Price incl. VAT
31
Cavalier
GU31500483
£46,15 Unit Price incl. VAT
32
screw M8x30
GU66530505
Not Available
33
screw
GU31530578
Not Available
34
O-ring
GU31530577
Not Available

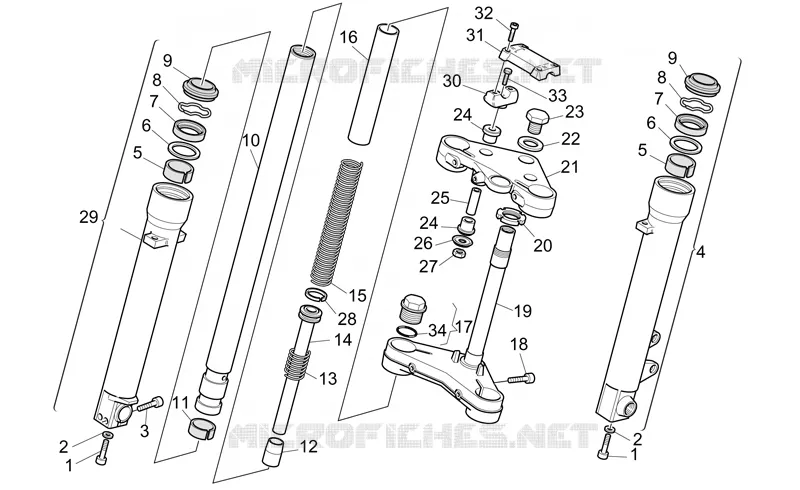

Find the detailed Front fork MOTO GUZZI LAVERDA SCARABEO diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original MOTO GUZZI LAVERDA SCARABEO part number.
